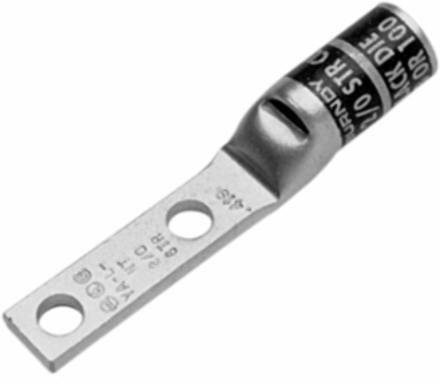

Burndy YA2CL2NT14E1 Copper Terminal Connector, 2 AWG, 2 Holes, 35 kV, 1/4 Inch Stud
- MPN: YA2CL2NT14E1
- UPC: 781810019870
- PPN: BUR-50239R
CAD
$29.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu compression narrow toungue std barrel-Code conductor, 2 holes/W/ insp window, #2 AWG, 600V-35Kv, 1/4" stud,Brown, 10 index
Documentation & Downloads
Specifications
Dimensions
- Bolt Size
- 1/4 in
- Dimension - B Length inch
- 0.88 in
- Dimension - D inch
- 1.64 in
- Dimension - Length Overall inch
- 2.84 in
- Dimension - Outside Diameter inch
- 0.42 in
- Dimension - Strip Length inch
- 15/16
- Dimension - Z inch
- 0.33 in
- Outside Diameter
- 0.42 in
Dimension - B Length fraction7/8 in
Dimension - Bolt Hole Size inch0.27 in
Dimension - L Length Overall mm72 mm
Dimension - N inch0.31 in
Dimension - Pad Width inch0.48 in
Dimension - Stud Size inch1/4
Length2.85 in
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - AL Str Size
- 2 AWG
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Str Navy Size Range
- 60 (37) Navy
- Conductor - Copper Str Size Range
- 2 AWG
Conductor - AL Str Size Range2 AWG
Conductor - Copper Str Navy Size60 (37) Navy
Conductor - Copper Str Size2 AWG
General
- Color Code
- Brown
- Die Index
- 10
- Feature - Barrel Type
- Standard
- Physical Attribute - Number of Holes
- 2
- Plated
- Y
- Trade Name
- HYLUG™
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
Physical Attribute - Tongue TypeStandard
Plating TypeTin - Electro Plated
UPC781810019870
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
