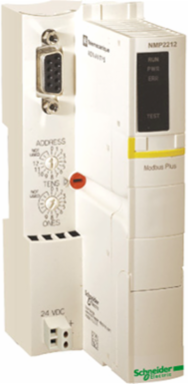

Schneider Electric STBNMP2212 Modicon Network Interface Module - Modbus Plus 1 Mbit/s, 0.145 kg, IP20
- MPN: STBNMP2212
- PPN: SCH-STBNMP2212
CAD
$753.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Modicon Network Interface Module from Schneider Electric serves as a vital component in automation and control systems, seamlessly integrating with Modbus Plus networks at a high speed of 1 Mbit/s. This module enhances communication efficiency within PLC architectures and HMI setups, ensuring reliable data acquisition and control. Designed with an IP20 rating, it's suitable for various industrial environments, making it an excellent choice for applications that require robust network connectivity. With this module, users can expect enhanced performance in their automation processes, streamlining operations and improving overall system responsiveness.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, Indonesia, United States |
|---|
| Depth | 70 mm |
|---|
Communications & Management Attributes
| Communication Service | Global Data, peer cop dialogue, peer to peer dialogue |
|---|
Complementary Attributes
| Integrated Connection Type | Modbus Plus modbus.org 9-way female SUB-D connector 1 twisted pair network)Modbus Plus modbus.org HE-13 RS232 port), Modbus Plus modbus.org 8-way female RS232 port) |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Local Signalling | 1 LED green island state (RUN), 1 LED green power supply (PWR)1 LED red module error (ERR)1 LED yellow MB+, 1 LED yellow test mode |
| Vibration Resistance | +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz)3 gn 58-150 Hz) on 35 mm DIN rail, 5 gn 58-150 Hz) on 35 mm DIN rail, +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz) |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Electromagnetic Compatibility | immunity to electromagnetic interference IEC 61131-2 |
| Marking | CE |
| Number Of Hw Interfaces Serial Rs23 | 1 |
| Power Supply Type | SELV |
| Product Or Component Type | standard Network Interface Module |
| Radio Standard Gprs | false |
| Radio Standard Umts | false |
| Returnability | No |
| Structure Type | industrial LAN |
| Supporting Protocol For Can | false |
| Supporting Protocol For Devicenet Safety | false |
| Supporting Protocol For Foundation Fieldbus | false |
| Supporting Protocol For Knx | false |
| Supporting Protocol For Modbus | false |
| Supporting Protocol For Profibus | false |
| Supporting Protocol For Profinet Io | false |
| Supporting Protocol For Safetybus P | false |
| Supporting Protocol For Suconet | false |
| Transmission Rate | 1 Mbit/s |
| Certified For Ul Hazardous Location Class Ii | false |
| Certified For Ul Hazardous Location Division 1 | false |
| Dc Supply Voltage | 24-24 V |
| System Accessory | true |
| Radio Standard Lte | false |
| Width Nominal | 128.3 mm |
| Appendant Operation Agent (Ex Ia) | false |
| Certified For Ul Hazardous Location Group A (Acetylene) | false |
| Certified For Ul Hazardous Location Group C (Ethylene)) | false |
| Certified For Ul Hazardous Location Group E (Metal Dusts) | false |
| Certified For Ul Hazardous Location Group G (Non Conductive Dust) | false |
| Performance Level According To En Iso 13849-1 | none |
| Radio Standard Wi-fi 802.11 | false |
| Supporting Protocol For Data-highway | false |
| Supporting Protocol For Interbus-safety | false |
| Wall Mounting/Direct Mounting Possible | false |
| Package Weight(Lbs) | 179.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Number Of Devices Per Segment | 0-32 per segment, 0-64 all segment |
| Certificate Agency | CSA, UL, FM Class 1 Division 2, C-tick, ATEX Cat 3G |
| Local Publishable Date | 2026-02-24 |
| Stocking Flag | Y |
| Device Type | Automation - Distributed inputs/ouputs |
| Traceability | Yes |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2023 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Bearing Track Assembly Possible | true |
| Front Installation Possible | false |
| Network Type | DC |
| Number Of Segments | 1 primary, maximum 6 extensions |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Radio Standard Bluetooth | false |
| Radio Standard Gsm | false |
| Range Of Product | Modicon STB distributed I/O solution |
| Shock Resistance | 30 gn 11 msIEC 88 reference 2-27 |
| Supporting Protocol For Asi | false |
| Supporting Protocol For Devicenet | false |
| Supporting Protocol For Ethercat | false |
| Supporting Protocol For Interbus | false |
| Supporting Protocol For Lon | false |
| Supporting Protocol For Other Bus Systems | false |
| Supporting Protocol For Profinet Cba | false |
| Supporting Protocol For Profisafe | false |
| Supporting Protocol For Sercos | false |
| Sustainable Packaging | No |
| Certified For Ul Hazardous Location Class I | false |
| Certified For Ul Hazardous Location Class Iii | false |
| Certified For Ul Hazardous Location Division 2 | false |
| Potential Separation Present | true |
| Radio Standard Egprs | false |
| Height Nominal | 40 mm |
| Number Of Addressable I/O Module | 0-32 per island |
| Appendant Operation Agent (Ex Ib) | false |
| Certified For Ul Hazardous Location Group B (Hydrogen) | false |
| Certified For Ul Hazardous Location Group D (Propane)) | false |
| Certified For Ul Hazardous Location Group F (Carbonaceous Dust) | false |
| Io-link Master Present | false |
| Rack-assembly Possible | true |
| Supporting Protocol For As-interface Safety At Work | false |
| Supporting Protocol For Ethernet/Ip | false |
| Supporting Protocol For Tcp/Ip | false |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8537109170 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C with derating factor, -25-70 °C with derating factor, 0-60 °C without derating, -25-70 °C with derating factor, -25-70 °C with derating factor |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | <= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m) |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 95-95 % 60-60 °C without condensation |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Ambient Air Temperature For Storage | -40-85 °C-40-85 °C |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | standard Network Interface Module |
|---|
| Range Of Product | Modicon STB distributed I/O solution |
|---|
ETIM
| ETIM 8 | EC001604 |
|---|
| ETIM 9 | EC001604 |
|---|
Output Attributes
| Nominal Output Current | 0.575 A 60-70 °C, 1.2 A |
|---|
| Output Voltage | 5.25 V DC +/- 0.21 %)logic bus |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Input Current | 430 mA supply circuit |
|---|
