Schneider Electric

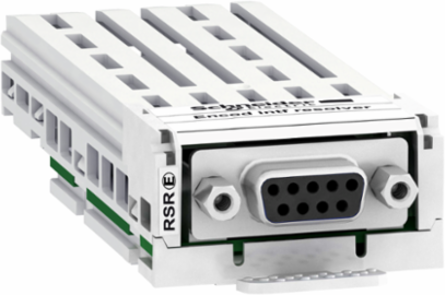

Schneider Electric VW3A3423 Resolver Encoder Interface Module, 1 Female SUB-D 9 Connector, Mercury Free

  • MPN: VW3A3423
  • PPN: SCH-VW3A3423
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $191.78

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This resolver encoder interface module can be used for Flux Vector Control operation with sensor for asynchronous motors. It can also be used for Vector Control operation with speed feedback for synchronous motors. It improves drive performance irrespective of the motor load state. This module is inserted in a dedicated slot of the variable speed drive. It is protected against encoder supply short circuits and overloads. It is compatible with Altivar Process ATV900 and Modular, and Altivar Machine ATV340. It has 1 female SUB-D 9 connector.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginBrazil, Spain, France, Indonesia, Sweden, United States

    Complementary Attributes

    Maximum Cable Distance Between Devices100 m
    Maximum Supply Current0.05 A
    Maximum Operating Frequency12 kHz

    Important Information Attributes

    Persona Type IdsEU, OM, OM8, SI
    Protection Typeoverload protection, short-circuit protection
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.061995492
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]5 kg CO2 eq., 4.7966555027
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Use Carbon Footprint102.28
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticNo
    Tier Id2
    Function Option IdADVANCED
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Encoder Typeresolver
    Product Or Component Typeencoder interface module
    Ratio3/10, 1/2, 3/4, 1
    Software VersionEIME v5.8.1
    Total Lifecycle Carbon Footprint107 kg CO2 eq.
    Database Version2018-11
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo adapt the variable speed drive to specific applications. Calculation of the environmental impact is based on 10 years of product service lifetime. The usage profile taken into account is 100% uptime in use phase.
    Functional-unit Unitunit
    Energy Consumption On Product Lifetime In Kwh219
    Energy Model - Installation [A5]Electricity mix 1kV-60kV; AC; 1kV - 60kV; EU-27
    Energy Model - End Of Life [C1-c4]Electricity mix 1kV-60kV; AC; 1kV - 60kV; EU-27
    Package Weight(Lbs)157.0 g
    Warranty (In Months)18
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]1160
    Net Use Of Fresh Water (M3) Operational Energy Use [B6]369.74
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]1776.5
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]260.25
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]260.25
    Customs Code8517620090
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
    Carbon Footprint Of The Distribution Phase [A4]0.0202567754, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0071162677, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]102 kg CO2 eq., 102.28
    Local Publishable Date2026-01-12
    Stocking FlagY
    Device TypeVariable speed drive - VSD option & accessory
    TraceabilityNo
    Weee ApplicabilityComponent
    Weee Exclusion RationaleComponent not in scope – non independent function
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1929
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Tier2
    Function OptionAdvanced
    Market SegmentationIndustrial
    Connector Type1 female SUB-D 9
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Range Of ProductAltivar
    ReturnabilityYes
    Sustainable PackagingNo
    Pep CodeENVPEP2010009EN
    Pep Verification Date2020-12-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Energy model used: Indonesia
    Energy Model - Use [B6]Electricity mix 1kV-60kV; AC; 1kV - 60kV; EU-27
    Nbr. Of Units In Pkg.1
    Take-backNo
    Air Pollution (M3) Operational Energy Use [B6]4374.2
    Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]102.28
    Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]381.25
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]2036.7
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1776.5
    Water Pollution (M3) Operational Energy Use [B6]4226.6

    Environment Attributes Main

    Take BackNo
    China Rohs RegulationX
    Carbon Footprint107.1660240378
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Without Single Use PlasticNo
    Pep CodeENVPEP2010009EN
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Environmental DisclosureENVPEP2010009EN
    Packaging Made With Recycled CardboardNo
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2020-12-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29

    General Attributes

    Product Or Component Typeencoder interface module
    Range Of ProductAltivar

    ETIM

    ETIM 8EC002025
    ETIM 9EC002025

    Output Attributes

    Output SignalRef+, Ref-

    Input Attributes

    Input SignalSin+, Sin-, Cos+, Cos-, Temp+, Temp-
    Resolver Encoder Interface Module, 1 Female SUB-D 9 Connector, Mercury Free
