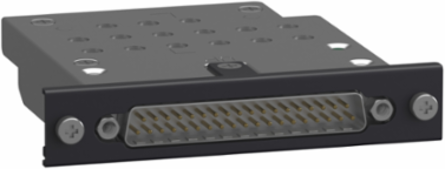

Schneider Electric HMIYP6MPR23P4 Harmony P6 Serial Line Interface Module, 1 x D-Sub 37pin Connector, 2400-115200 bps
- MPN: HMIYP6MPR23P4
- PPN: SCH-HMIYP6MPR23P4
CAD
$672.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This is a dedicated inteface module used with Box PCs of Schneider Electric's Harmony P6 range. HMIYP6MPR23P4 is a non-isolated 4x RS-232 interface with 1x D-Sub 37 pin plug connector. It weighs 0.30Kg. They are compatible with all Harmony P6 Advanced and Standard Box PCs. Harmony P6 PC's smart design and engineering shortens implementation time for automation engineers and is more economical throughout the life cycle with optimized design and ease of maintenance. Harmony P6 industiral PCs caters to the complex machine, line monitor and processes at Edge Control and Apps Analytics level of EcoStruxure.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, United States
Complementary Attributes
- Integrated Connection Type
- Mini PCIe full-size 1 male SUB-D 9 RS232C 2400...115200 bps
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 4
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Product Or Component Type
- serial line interface
- Returnability
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Accessory / Separate Part Destination
- Harmony P6
- F-gas Usage Performance
- Only air and vacuum used for insulation / breaking, no F-gas including SF6
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- No
- Warranty (In Months)
- 24
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Local Publishable Date2026-01-12
Stocking FlagY
ServiceabilityNo
Weee ApplicabilityComponent
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2532
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductHarmony P6
Sustainable PackagingNo
Accessory / Separate Part Categoryconnection accessory
F-gas FreeOnly air and vacuum used for insulation / breaking, no F-gas including SF6
Halogen-free StatusProduct contains halogen above thresholds
Package Weight(Lbs)500.0 g
Take-backNo
Customs Code8471607000
Environment Attributes Main
- Ambient Air Temperature For Storage
- -30-70 °C, -30-70 °C
- Halogene Performance
- Product contains halogen above thresholds
- China Rohs Regulation
- X
- Silicon Free
- No
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation0-55 °C
Halogen Content PerformanceProduct contains halogen above thresholds
Packaging Without Single Use PlasticNo
Relative Humidity5-95 % non-condensing
General Attributes
- Product Or Component Type
- serial line interface
Range Of ProductHarmony P6
ETIM
- ETIM 8
- EC002584
ETIM 9EC002584
Contractual Warranty Attributes
- Warranty Period
- 24 months
Warranty24 months
