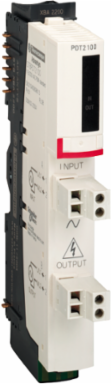

Schneider Electric STBPDT2100K Standard Power Distribution Kit 115-230V AC, IP20, 0.129 kg, 125 mm Width
- MPN: STBPDT2100K
- PPN: SCH-STBPDT2100K
CAD
$154.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Schneider Electric brings you a robust standard power distribution kit, ideal for automation and control applications. With an operational range of 115-230V AC, this unit is designed to provide reliable power supply solutions for your PLC setups. Its IP20 rating ensures protection against solid objects, making it suitable for various environments. At a compact width of 125 mm, the power distribution kit efficiently manages the distribution of electrical power while maintaining a lightweight profile. Perfectly suited for panel builders and system integrators, it enhances the performance of your automation systems.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Indonesia, United States
Depth65.1 mm
Physical Attributes
- Housing Color
- white
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Kit Composition
- STBPDT2100 module, STBXBA2200 base, STBXTS2130, spring type connectors, STBXTS1130, screw type connectors
- Protection Type
- built-in , 10 A time-lag output circuitbuilt-in , 5 A time-lag input circuit, overcurrent protection
- Voltage Detection Threshold
- < 50 V +/-5 AC IN/OUT LED non lit, < 50 V +/-5 AC IN/OUT LED non lit, > 70 V +/-5 AC IN/OUT LED lit, > 70 V +/-5 AC IN/OUT LED lit< 50 V +/-5 AC IN/OUT LED non lit, < 50 V +/-5 AC IN/OUT LED non lit, > 70 V +/-5 AC IN/OUT LED lit, > 70 V +/-5 AC IN/OUT LED lit
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Product Category
- 5
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 4
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Marking
- CE
- Permissible Current
- 30 A for 2 minutes grounding terminal
- Product Or Component Type
- standard power distribution kit
- Redundancy
- no
- Shock Resistance
- 30 gn 11 msIEC 88 reference 2-27
- Sustainable Packaging
- No
- Housing Color
- white
- Input Voltage Ac 60 Hz
- 115-230 V
- Height Nominal
- 18.4 mm
- [Us] Rated Supply Voltage
- 115...230 V AC
- Max. Output Current Dc
- 8 A
- Package Weight(Lbs)
- 148.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Local Signalling1 LED green actuator bus power supply (OUT), 1 LED green sensor bus power supply (IN)
Vibration Resistance+/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz)3 gn 58-150 Hz) on 35 mm DIN rail, 5 gn 58-150 Hz) on 35 mm DIN rail, +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz)
Certificate AgencyCSA, FM Class 1 Division 2, UL
Local Publishable Date2026-07-27
Stocking FlagN
Device TypeAutomation - Distributed inputs/ouputs
TraceabilityYes
Weee ScopeOut
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1920
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionStandard
Market SegmentationIndustrial
Hot Swapping Fallbackno
Overvoltage CategoryII
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductModicon STB distributed I/O solution
ReturnabilityYes
Supply Frequency50...60 Hz
Voltage Range85...265 V AC sensor/actuator bus
Input Voltage Ac 50 Hz115-230 V
Output Voltage Dc24-24 V
Width Nominal125 mm
Max. Input Current Dc4 A
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536904000
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C without derating, -40-85 °C without derating-40-85 °C without derating, -40-85 °C without derating
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- <= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m)
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Take BackNo
China Rohs RegulationX
Ambient Air Temperature For Operation0-60 °C without derating)
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardNo
Product Compatibilitymounting base STBXBA2200
Relative Humidity95-95 % 60-60 °C without condensation
General Attributes
- Product Or Component Type
- standard power distribution kit
Range Of ProductModicon STB distributed I/O solution
ETIM
- ETIM 8
- EC002583
ETIM 9EC002583
Output Attributes
- Power Supply Output Current
- 0-5 A input circuit0-5 A output circuit, 0-10 A output circuit, 0-2.5 A input circuit
Output Voltage TypeAC/DC
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Voltage Type
- AC/DC
