Burndy BDBMCS2N1FSKIT VERSIPOLE Power Distribution Block, Aluminum, For Wire Sizes Up to 535 DLO
- MPN: BDBMCS2N1FSKIT
- UPC: 621945457270
- PPN: BUR-50065151
- UNSPSC: 39121424
CAD
$30.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
FINGER-SAFE KIT.
Features
- AL9CU dual rated for use with copper and aluminum conductors
- Range taking designs accommodate wire sizes up to 535 DLO and can support 1 or 2 run conductors and up to 12 taps for secondary circuits
- Allow for panel mounting, medium and large sizes also allow for DIN rail mounting

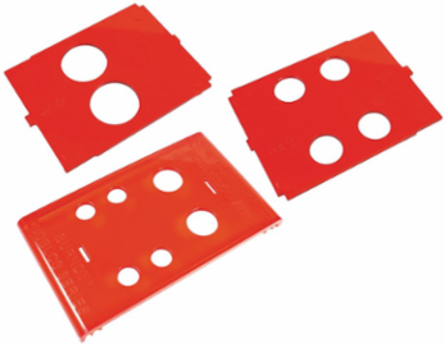

- Finger-Safe style are provided with translucent polycarbonate top covers and end plates permitting easy visual inspection, provide IEC 605219 IP-20 Rating
- Base and side barriers of glass-reinforced nylon 6/6 for extra durability and excellent insulating properties
- UL94 flammability rating of V0
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Plated | N |
| Product Type | RUN/TAP |
| Standards - RoHS Compliance Status | CM |
| Insulation | Y |
| Connector Type | Power Distribution Block |
| Class Code | B10 |
| Harmonization Code | 3926909989 |
| Lead Time | 12 wk |
| Material | Aluminum |
| BOX SIZE | 4.875x9.313x6.443 (in) |
| Carton - Number of Sub Packs | 20 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00621945457270 |
| Case - SCC-14 Next Lower Level Sub Pack | 30621945457271 |
| Package - Total Units | 20 EA |
| Package Weight | 0.000 lb. |
| Pallet Height | 44.750 in |
| Pallet Weight | 419.400 lb. |
| Standard Package Quantity | 20 |
| Description - Slang | Distribution Blocks |
|---|---|
| Plating Type | Unplated |
| Rating - Minimum Voltage | 600 |
| Trade Name | VERSIPOLE™ |
| Temperature Rating | 194 |
| Certification Agency | Proposition 65 |
| Freight Class Code | 16027000 |
| Image Actual Or Representative | A |
| Sub Class Code | B10DBMC |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 1.560 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 20 |
| Package - GTIN - Package | 30621945457271 |
| Package Quantity | 20 EA |
| Pallet - GTIN - Package | 70621945457279 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| NAICS Code | 3359319101 |
Certifications
| CSA Approved | No |
|---|
| cULus | Yes |
|---|
