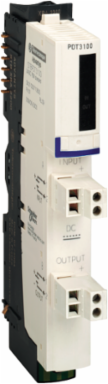

Schneider Electric STBPDT3100K Modicon STB Power Distribution Kit, 24V DC, IP20, 0.13kg
- MPN: STBPDT3100K
- PPN: SCH-STBPDT3100K
CAD
$119.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard power distribution kit supports hot swapping illegal fallback. This product is compatible with most major fieldbus networks. It allows 30A permissible current for 2 minutes grounding terminal. The voltage detection threshold is <15V ±1 DC IN/OUT LED lit and ≥15V ±1 DC IN/OUT LED non lit. It is an IP20 rated product. Its dimensions are 18.4mm (width) x 65.1mm (depth) x 125mm (height) and weighs 0.13kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. This kit is suitable for use with mounting base STBXBA2200. The kit includes STBXTS2130, spring type connectors, STBPDT2100 module, STBXBA2200 base and STBXTS1130 screw type connectors. It supports STBXBA2200 mounting base. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Mexico, United States
Depth65.1 mm
Physical Attributes
- Housing Color
- white
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Kit Composition
- STBXTS2130, spring type connectors, STBPDT3100 module, STBXBA2200 base, STBXTS1130, screw type connectors
- Protection Type
- built-in overcurrent protection, 10 A time-lag output circuit, built-in overcurrent protection, 5 A time-lag input circuit, reverse polarity actuator bus, overcurrent protection, reverse polarity
- Certificate Agency
- CSA, FM Class 1 Division 2, UL
- Local Publishable Date
- 2025-07-09
- Future Imap
- 82.65
- Stocking Flag
- Y
- Device Type
- Automation - Distributed inputs/ouputs
- Traceability
- Yes
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1920
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 4
- Function Option
- Standard
- Market Segmentation
- Industrial
- Hot Swapping Fallback
- no
- Overvoltage Category
- II
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Modicon STB distributed I/O solution
- Returnability
- Yes
- Sustainable Packaging
- No
- Housing Color
- white
- Output Voltage Dc
- 24-24 V
- Width Nominal
- 18.4 mm
- Max. Input Current Dc
- 4 A
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Local Signalling1 LED green actuator bus power supply (OUT), 1 LED green sensor bus power supply (IN)
Vibration Resistance+/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz)3 gn 58-150 Hz) on 35 mm DIN rail, 5 gn 58-150 Hz) on 35 mm DIN rail, +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz)
Local Data StatusPublishable
Return IndicatorY
Future Msrp99.84
Stock Policy1
ServiceabilityNo
Field Service DivisionIDIBS
Weee Product Category5
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id4
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
MarkingCE
Permissible Current30 A for 2 minutes grounding terminal
Product Or Component Typestandard power distribution kit
Redundancyno
Shock Resistance30 gn 11 msIEC 88 reference 2-27
Voltage Range19.2...30 V DC sensor/actuator bus
Input Voltage Dc19.2-30 V
Height Nominal125 mm
[Us] Rated Supply Voltage24 V DC
Max. Output Current Dc8 A
Package Weight(Lbs)150.0 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C without derating, -40-85 °C without derating-40-85 °C without derating, -40-85 °C without derating
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- <= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m)
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Take BackNo
China Rohs RegulationX
Ambient Air Temperature For Operation0-60 °C without derating)
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardNo
Product Compatibilitymounting base STBXBA2200
Relative Humidity95-95 % 60-60 °C without condensation
