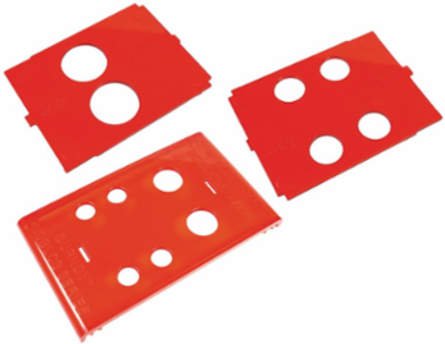

Burndy BDBLCS6V1FSKIT VERSIPOLETM Finger Safe Kit with 600V Rating, Supports Up to 535 DLO Wire Sizes
- MPN: BDBLCS6V1FSKIT
- UPC: 621945457256
- PPN: BUR-50065149
- UNSPSC: 39121424
CAD
$33.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
BURNDY® VERSIPOLE™ Power Distribution Block Finger Safe Kit.
Features
- AL9CU dual rated for use with copper and aluminum conductors
- Range taking designs accommodate wire sizes up to 535 DLO and can support 1 or 2 run conductors and up to 12 taps for secondary circuits
- Allow for panel mounting, medium and large sizes also allow for DIN rail mounting
- Finger-Safe style are provided with translucent polycarbonate top covers and end plates permitting easy visual inspection, provide IEC 605219 IP-20 Rating
- Base and side barriers of glass-reinforced nylon 6/6 for extra durability and excellent insulating properties
- UL94 flammability rating of V0
Specifications
Key Specifications
- Country of Origin
- United States
- Plated
- N
- Product Type
- RUN/TAP
- Standards - RoHS Compliance Status
- CM
- Insulation
- Y
- Connector Type
- Power Distribution Block
- Class Code
- B10
- Harmonization Code
- 3926909989
- Lead Time
- 12 wk
- Material
- Aluminum
- BOX SIZE
- 6.375x12.313x9.313 (in)
- Carton - Number of Sub Packs
- 20
- Carton - SCC-14 Next Lower Level Sub Pack
- 00621945457256
- Case - SCC-14 Next Lower Level Sub Pack
- 30621945457257
- Package - Total Units
- 20 EA
- Package Weight
- 0.000 lb.
- Pallet Height
- 44.000 in
- Pallet Weight
- 223.200 lb.
- Standard Package Quantity
- 20
Description - SlangDistribution Blocks
Plating TypeUnplated
Rating - Minimum Voltage600
Trade NameVERSIPOLE™
Temperature Rating194° F
Certification AgencyProposition 65
Freight Class Code16027000
Image Actual Or RepresentativeA
Sub Class CodeB10DBLC
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.980 lb.
Carton - Pack DescriptionCarton
Carton - Total Units20
Package - GTIN - Package30621945457257
Package Quantity20 EA
Pallet - GTIN - Package70621945457255
Pallet Length48.000 in
Pallet Width40.000 in
NAICS Code3359319101
Certifications
- CSA Approved
- No
cULusYes
