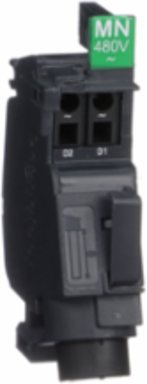

Schneider Electric LV426807 Standard Undervoltage Release MN, 440/480V AC 60Hz, Spring Terminal

  • MPN: LV426807
  • PPN: SCH-LV426807
  • UNSPSC: 39121601

CAD

$954.95

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This standard MN undervoltage release is used on Compact NSXm and PowerPact B devices. This auxiliary is used for emergency off or failsafe remote tripping applications. It is a one click spring type auxiliary for quick and easy installation, visible from the front face of the device. This MN auxiliary has a 440/480 VAC 60 Hz rated voltage. It trips the circuit breaker when the control voltage drops below 35% of its rated value. It complies with IEC 60947-2 standard. Compact NSXm and PowerPact B embed either 1 MN or 1 MX coil.

Features

  • ComPacT NSXm has smaller frame size, incorporating new features and innovations
  • ComPacT NSXm is the smallest frame size in the rage, offering new features and innovations
  • Gain up to 40% in space when using with integrated earth leakage protection
  • Reduce up to 40% mounting and cabling time
  • Select, configure and commission easily with EcoStruxure Customer Lifecycle Software
  • DIN rail mounting product
  • EverLink connectors with patented creep compensating technology
  • New spring type auxiliaries and new wireless indication contact

Documentation & Downloads

Specifications

Key Specifications

Country of OriginFrance
Weight61 g

Complementary Attributes

Uc Control Circuit Voltage440...480 V AC 60 Hz

Important Information Attributes

Persona Type IdsEU, LC, OM, OM8, PB, SC, SI
Market Segmentation IdCOMMERCIAL, INDUSTRIAL
Voltage Release Typeopening coil, undervoltage release
Carbon Footprint Of The End Of Life Phase C1 To C40.1 kg CO2 eq., 0.10177680555555556
Carbon Footprint Of The Manufacturing Phase A1 To A30.7 kg CO2 eq., 0.69578125
Local Data StatusPublishable
Return IndicatorN
TraceabilityNo
Use Carbon Footprint251.33
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2311042EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1824
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Auxiliary Connection Terminalspring
Device Applicationcontrol
Energy Efficiency OptimizedFalse
Product Or Component Typevoltage release
Range Of ProductComPacT NSXm
ReturnabilityNo
Sustainable PackagingYes
Total Lifecycle Carbon Footprint252 kg CO2 eq.
Control Circuit Voltage 4440...480 V
Control Circuit Voltage 4 Control Circuit Voltage440...480 V
Data Sourceextrapolated product
Customs Code8536308000
Silicone FreeNo
Functional Unit DescriptionTo trip the circuit breaker when the control voltage drops below 35% of its rated voltage.& 10Between 35% and 70% of the rated voltage opening is possible but not ensured.& 10This function is provided for 10 years.& 10It complies with IEC 60947-2 standard.
Functional Unit UnitUnit
Energy Consumption On Product Lifetime In Kwh613.2
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A40.007976766666666666, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.02707383333333333, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6251 kg CO2 eq., 251.33
Local Publishable Date2025-08-13
ServiceabilityNo
Field Service DivisionPPIBS
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Control Typestandard
Device Short NameMN
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangeComPact
Response Time< 50 ms< 50 ms
Software Versionv5.9.4
Threshold Tripping Voltage0.35...0.7 x Un opening0.85 x Un closing
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Control Circuit Voltage 4 Control Circuit TypeAC
Database Version2022-01
Nbr. Of Units In Pkg.1
Halogen Free StatusProduct contains halogen above thresholds
Warranty In Months18
Functional Unit Quantity1
Reference Lifetime In Y10
Recyclability Potential In %32

Environment Attributes Main

China Rohs RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Halogene PerformanceProduct contains halogen above thresholds
Mercury FreeYes
Carbon Footprint252.16260865555554
Environmental DisclosureENVPEP2311042EN
Halogen Content PerformanceProduct contains halogen above thresholds
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2311042EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Take BackNo
Recycled Metal Content At Cr Level0 %
Silicon FreeNo
Circularity ProfileENVEOLI2311042EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-12-03
Psr VersionPSR-0005-ed2-2016 03 29

General Attributes

Product Or Component Typevoltage release
Range Of ProductComPacT NSXm

ETIM

ETIM 8EC001022
ETIM 10EC001022
ETIM 9EC001022
Standard Undervoltage Release MN, 440/480V AC 60Hz, Spring Terminal
