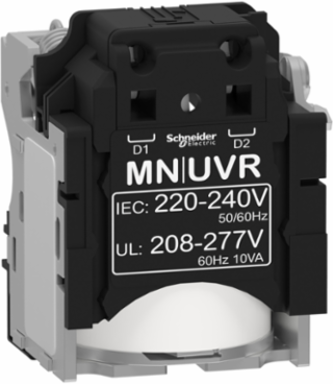

Schneider Electric LV429407 ComPacT NSX MN Undervoltage Release 220-240V AC, 208-277V AC

MPN: LV429407
PPN: SCH-LV429407
UNSPSC: 39121601

$1293.08

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This is a MN undervoltage release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. Its rated voltage is 220 to 240 VAC 50/60 Hz, or 208 to 277 VAC 60 Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage drops to a value below 35% of its rated voltage Un. It complies with IEC 60947-2 standard. This undervoltage release is a UL Listed/CSA Certified circuit breaker accessory. Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary.

Features

Schneider Electric green signature style for the entire ComPacT range
Estimated 40% reduction of wiring time for panel builders
Experience easier installation thanks to a new ergonomic front-plate design
Gain the confidence that all auxiliaries are on the right spot
Ergonomic new toggle for easier breaker manual operation

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Poland

Weight	120 g

Physical Attributes

Wire Stripping Length	7 mm

Complementary Attributes

Uc Control Circuit Voltage	220...240 V AC 50/60 Hz208...277 V AC 60 Hz

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SC, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Range Of Product	ComPacT NSX100...250, ComPacT NSX400...630, ComPacT NSX100...250 DC, ComPacT NSX100...250 DC PV, ComPacT NSX400...630 DC, ComPacT NSX400...630 DC PV
Carbon Footprint Of The Distribution Phase A4	0.034591, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.084068, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	180 kg CO2 eq., 179.52
Local Publishable Date	2025-07-10
Serviceability	No
Field Service Division	PPIBS
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2127
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Auxiliary Connection Terminal	spring 0.5-1.5 mm² 20 AWG...16 AWG)
Device Short Name	MN
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range	ComPacT
Returnability	No
Supply Holding Power	5 VA
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	180 kg CO2 eq.
Control Circuit Voltage 4	208...277 V
Control Circuit Voltage 4 Control Circuit Voltage	208...277 V
Data Source	referent product
Customs Code	8536308000
Silicone Free	No
Packaging Weight In G	46.3
Functional Unit Quantity	1
Reference Lifetime In Y	10

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market Segmentation	Commercial, Industrial
Voltage Release Type	opening coil, undervoltage release
Carbon Footprint Of The End Of Life Phase C1 To C4	0.2 kg CO2 eq., 0.18087
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.4 kg CO2 eq., 0.42895
Local Data Status	Publishable
Return Indicator	N
Traceability	No
Use Carbon Footprint	179.52
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Device Application	control
Energy Efficiency Optimized	False
Product Or Component Type	voltage release
Response Time	50 ms
Software Version	v5.9.4
Supply Inrush Power	10 VA
Threshold Tripping Voltage	0.35...0.7 x Un opening0.85 x Un closing
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Control Circuit Voltage 4 Control Circuit Type	AC
Database Version	2022-01
Nbr. Of Units In Pkg.	1
Halogen Free Status	Product contains halogen above thresholds
Warranty In Months	18
Functional Unit Description	Undervoltage release allow user to remotely trip the circuit breaker during 10 years in accordance& 10with IEC 60947-2
Functional Unit Unit	unit
Recyclability Potential In %	79

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Halogene Performance	Product contains halogen above thresholds
Mercury Free	Yes
Carbon Footprint	180.248479
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-06-01
Psr Version	PSR-0005-ed2-2016 03 29

Take Back	No
Recycled Metal Content At Cr Level	0 %
Silicon Free	No
Environmental Disclosure	ENVPEP2304023EN
Halogen Content Performance	Product contains halogen above thresholds
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2304023EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review

General Attributes

Range Of Product	ComPacT NSX100...250, ComPacT NSX400...630, ComPacT NSX100...250 DC, ComPacT NSX100...250 DC PV, ComPacT NSX400...630 DC, ComPacT NSX400...630 DC PV
