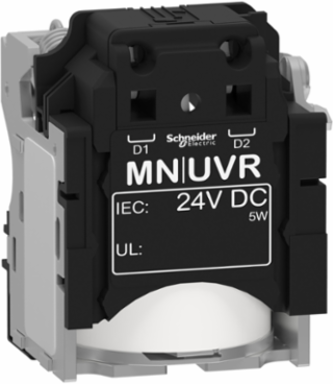

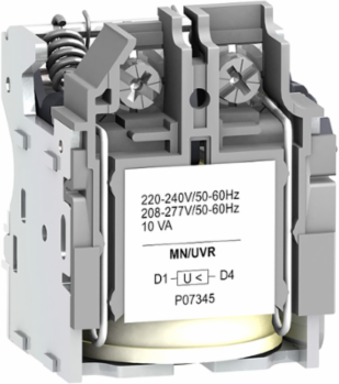

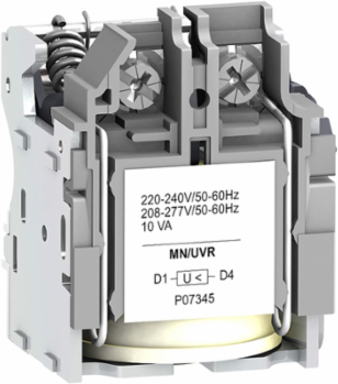

Schneider Electric LV429410 ComPacT NSX MN Undervoltage Release 24VDC, 5W Power, Spring Terminal
- MPN: LV429410
- PPN: SCH-LV429410
CAD
$1293.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This is a MN undervoltage release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. Its rated voltage is 24 VDC. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage drops to a value below 35% of its rated voltage Un. It complies with IEC 60947-2 standard. This undervoltage release is a UL Listed/CSA Certified circuit breaker accessory. Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Poland, United States
Physical Attributes
- Wire Stripping Length
- 7 mm
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Range Of Product
- ComPacT NSX100...250, ComPacT NSX400...630, ComPacT NSX100...250 DC, ComPacT NSX100...250 DC PV, ComPacT NSX400...630 DC, ComPacT NSX400...630 DC PV, Galaxy VS
- Voltage Release Type
- opening coil, undervoltage release
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.2 kg CO2 eq., 0.174841
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.4 kg CO2 eq., 0.41465166666666664
- Local Data Status
- Publishable
- Return Indicator
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Service Catalog Item
- Finished good
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- control
- Energy Efficiency Optimized
- False
- Product Or Component Type
- voltage release
- Response Time
- 50 ms
- Software Version
- v5.9.4
- Supply Inrush Power
- 10 W
- Total Lifecycle Carbon Footprint
- 180 kg CO2 eq.
- Control Circuit Voltage 4
- 24 V
- Control Circuit Voltage 4 Control Circuit Voltage
- 24 V
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Undervoltage release allow user to remotely trip the circuit breaker during 10 years in accordance& 10with IEC 60947-2
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Recyclability Potential, In %
- 79
- Halogen-free Status
- Product contains halogen above thresholds
- Package Weight(Lbs)
- 124.000 g
- Take-back
- No
- Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]
- 49.2884
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 9.7701
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Threshold Tripping Voltage0.35...0.7 x Un opening, 0.85 x Un closing
Carbon Footprint Of The Distribution Phase [A4]0.033437966666666666, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.08126573333333334, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]180 kg CO2 eq., 179.52000000000004
Local Publishable Date2025-07-10
Stocking FlagY
TraceabilityNo
Preventive Maintenance60
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2127
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Auxiliary Connection Terminalspring 0.5-1.5 mm² AWG 20...AWG 16)
Device Short NameMN
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangeComPacT
ReturnabilityNo
Supply Holding Power5 W
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Control Circuit Voltage 4 Control Circuit TypeDC
Pep CodeENVPEP2304023EN
Pep Verification Date2023-06-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
[Uc] Control Circuit Voltage24 V DC
Nbr. Of Units In Pkg.1
Silicone-freeNo
Warranty (In Months)18
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]11.0403
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Halogene Performance
- Product contains halogen above thresholds
- Mercury Free
- Yes
- Carbon Footprint
- 180.2241963666667
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-06-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Silicon FreeNo
Environmental DisclosureENVPEP2304023EN
Halogen Content PerformanceProduct contains halogen above thresholds
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2304023EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Range Of Product
- ComPacT NSX100...250, ComPacT NSX400...630, ComPacT NSX100...250 DC, ComPacT NSX100...250 DC PV, ComPacT NSX400...630 DC, ComPacT NSX400...630 DC PV, Galaxy VS
Product Or Component Typevoltage release
ETIM
- ETIM 8
- EC001022
ETIM 9EC001022
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
