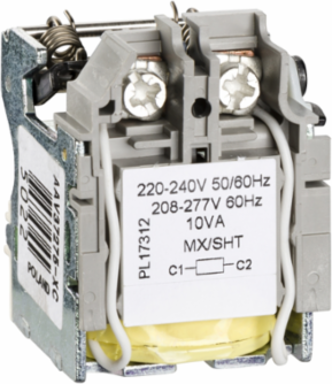

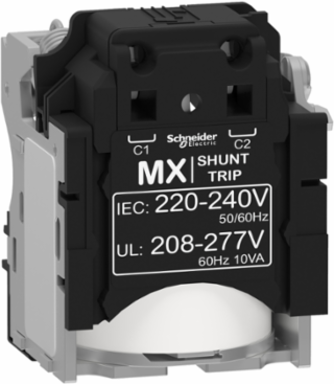

Schneider Electric LV429387 Shunt trip release MX, ComPacT NSX, 220/240VAC 50/60Hz, 208/277VAC 60Hz, screwless spring terminal connections
- MPN: LV429387
- PPN: SCH-LV429387
- UNSPSC: 39121568
CAD
$538.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This is a MX shunt trip release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. Its rated voltage is 220 to 240 VAC 50/60 Hz, or 208 to 277 VAC 60 Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage Un rises above 70% of its rated voltage Un. It complies with IEC 60947-2 standard. This shunt trip is a UL Listed/CSA Certified circuit breaker accessory. Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary.
Features
- Schneider Electric green signature style for the entire ComPacT range
- Estimated 40% reduction of wiring time for panel builders
- Experience easier installation thanks to a new ergonomic front-plate design
- Gain the confidence that all auxiliaries are on the right spot
- Ergonomic new toggle for easier breaker manual operation
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Poland, United States |
|---|
| Weight | 120 g |
|---|
Physical Attributes
| Wire Stripping Length | 7 mm |
|---|
Complementary Attributes
| Impulse Duration | >= 20 ms, >= 20 ms |
|---|
| Uc Control Circuit Voltage | 220...240 V AC 50/60 Hz208...277 V AC 60 Hz |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SC, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Control Signal Type | impulse, maintained |
| Voltage Release Type | opening coil, shunt trip release |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.2 kg CO2 eq., 0.18141 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 0.4 kg CO2 eq., 0.42407 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Traceability | No |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2542 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Auxiliary Connection Terminal | spring 0.5-1.5 mm² 20 AWG...16 AWG) |
| Device Short Name | MX |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range | ComPacT |
| Returnability | No |
| Supply Inrush Power | 10 VA |
| Threshold Tripping Voltage | 0.7...1.1 x Un opening |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Control Circuit Voltage 4 Control Circuit Type | AC |
| Database Version | 2022-01 |
| Nbr. Of Units In Pkg. | 1 |
| Halogen Free Status | Product contains halogen above thresholds |
| Warranty In Months | 18 |
| Functional Unit Description | Shunt allow user to remotely trip the circuit breaker during 10 years in accordance with& 10 IEC 60947-2. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 79 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Range Of Product | ComPacT NSX100...250, ComPacT NSX400...630, ComPacT NSX100...250 DC, ComPacT NSX100...250 DC PV, ComPacT NSX400...630 DC, ComPacT NSX400...630 DC PV |
| Carbon Footprint Of The Distribution Phase A4 | 0.034591, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.083317, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 0 kg CO2 eq., 0.00083833 |
| Local Publishable Date | 2025-07-10 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | control |
| Energy Efficiency Optimized | False |
| Product Or Component Type | voltage release |
| Response Time | 50 ms |
| Software Version | v5.9.4 |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 0.7 kg CO2 eq. |
| Control Circuit Voltage 4 | 208...277 V |
| Control Circuit Voltage 4 Control Circuit Voltage | 208...277 V |
| Data Source | referent product |
| Customs Code | 8505907501 |
| Silicone Free | No |
| Packaging Weight In G | 45.8 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Halogene Performance | Product contains halogen above thresholds |
| Mercury Free | Yes |
| Carbon Footprint | 0.7242263299999999 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-06-30 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Silicon Free | No |
| Environmental Disclosure | ENVPEP2304020EN |
| Halogen Content Performance | Product contains halogen above thresholds |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2304020EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Range Of Product | ComPacT NSX100...250, ComPacT NSX400...630, ComPacT NSX100...250 DC, ComPacT NSX100...250 DC PV, ComPacT NSX400...630 DC, ComPacT NSX400...630 DC PV |
|---|
| Product Or Component Type | voltage release |
|---|
ETIM
| ETIM 8 | EC001023 |
|---|---|
| ETIM 10 | EC001023 |
| ETIM 9 | EC001023 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
