Thomas & Betts K655SR-J0330-SG3 Deadbreak Straight Receptacle
- MPN: K655SR-J0330-SG3
- UPC: 075114146760
- PPN: T-B-K655SR-J0330-SG3
CAD
$1456.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Amp, 15/25kV, 600 Series Deadbreak Straight Receptacle with Cable Adapter, Lug and Retaining Ring. Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size kcmil Compressed Stranded 500 or Compacted Solid 600 or mmSquared Compact 250/300. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Fully shielded, fully submersible molded rubber housing. 100 Percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps. Sealing Kit
- Standard
- ANSI/IEEE Standard 386
- Connection
- Compression - Crimp
- Material
- Housing - EPDM Rubber
- Voltage Rating
- 15/25kV
- Insulation
- Yes, EPDM Rubber
- Consist Of

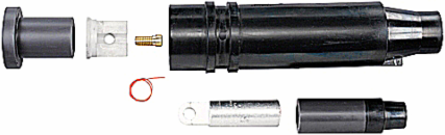

- 1 Straight Receptacle Housing, 1 Compression Lug, 1 Stud, 1 Insulated Plug with Cap, 3 Tubes Lubricant, 1 Straight Receptacle adapter, 1 Cable adapter, 1 Adapter Retaining Ring, 1 Hardware Prepack, Crimp Chart, Installation Instruction Sheets
IGCC4586 Electrical connector assembly
TypeDeadbreak Straight Receptacle
Application15/25kV, 600 Amps
SizeDiameter 4.19 inch x Length 16.98 inch
Conductor RangeConductor Size kcmil Compressed Stranded 500 or Compacted Solid 600
ColorBlack
Amperage Rating600 Amps
Environmental ConditionsAll Weather Conditions, Fully Submersible
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)1x1x1
