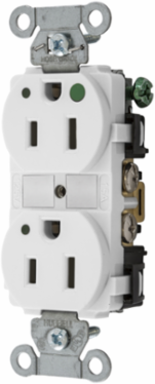

Hubbell Wiring Device-Kellems 8200WL Duplex Receptacle, Hospital Grade, 15A 125V, LED Indicator
- MPN: 8200WL
- UPC: 783585197005
- PPN: HBL-8200WL
- UNSPSC: 39121406
CAD
$35.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Duplex Receptacle, Hospital Grade, Hubbell-Pro, LED Indicator, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, White
Features
- Green LED Power Indicators to identify emergency circuits
- Triple wipe contacts
- High impact resistant face with circuit I.D. marking area
- Steel mounting strap
- Self Grounding, LED Indicator
Specifications
Key Specifications
- Country of Origin
- Mexico
- Dimensions
- 3.28 in x 1.57 in x 1.15 in
- Horsepower - Maximum
- 0.5
- Length
- 3.28 in
- Amperage Rating
- 15 A
- Color
- White
- NEMA Rating
- 5-15R
- Number of Wires
- 3-Wire
- Size
- 3.28 in x 1.57 in x 1.15 in
- Standard
- Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Voltage Rating
- 125 VAC
- Wire Size
- #14 AWG to #10 AWG
- Weight
- 0.1 lb.
- Engineering Drawing 1 Display Text
- 8200WL AutoCAD Drawing
- General Literature Asset 2 Display Text
- Hubbell-Pro Hospital Grade Receptacles
- Nema Rating
- 5-15R
- Number Of Wires
- 3-Wire
- Style
- Smooth Face
- Description - Invoice
- HUBBELL-PRO HG DPLX 15A/125V LED WH
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Indicator(s) Type
- Green LED
- Series
- Hubbell-Pro
- BOX SIZE
- 3.600x10.000x4.600 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585197005
- Case - Total Units
- 100 EA
- NAICS Code
- 335931A102
Current / Amperage Rating15 A
Height1.15 in
Industry Standard(s)Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
ApplicationHubbell-Pro Heavy Duty Hospital Grade
Dielectric StrengthWithstands 2,000V minimum
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesSelf Grounding, LED Indicator
TypeReceptacle
Wattage1875 W
Voltage Rating Description125 V
Width1.57 in
General Literature Asset 1 Display TextDuct Products Guide
ConnectivityBack and Side Wired
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA04A040
Current Rating15 A
MaterialNylon
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.250 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight24.450 lb.
