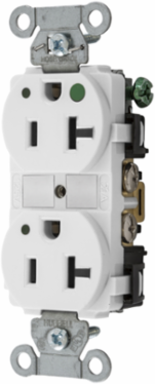

Hubbell Wiring Device-Kellems 8300WL Duplex Receptacle, Hospital Grade, 20A 125V, 3-Wire, LED Indicator
- MPN: 8300WL
- UPC: 783585196923
- PPN: HBL-8300WL
- UNSPSC: 39121406
CAD
$39.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Duplex Receptacle, Hospital Grade, Hubbell-Pro, LED Indicator, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, White.
Features
- Green LED Power Indicators to identify emergency circuits
- Triple wipe contacts
- High impact resistant face with circuit I.D. marking area
- Steel mounting strap
- Self Grounding, LED Indicator
Specifications
Key Specifications
- Country of Origin
- Mexico
- Dimensions
- 3.28 in x 1.57 in x 1.15 in
- Horsepower - Maximum
- 1
- Length
- 3.28 in
- Amperage Rating
- 20 A
- Color
- White
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Self Grounding, LED Indicator
- Type
- Receptacle
- Wattage
- 2500 W
- Voltage Rating Description
- 125 V
- Width
- 1.57 in
- General Literature Asset 1 Display Text
- Duct Products Guide
- Connectivity
- Back and Side Wired
- Nema Rating
- 5-20R
- Number Of Wires
- 3-Wire
- Style
- Smooth Face
- Description - Invoice
- HUBBELL-PRO HG DPLX 20A/125V LED WH
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Sub Class Code
- A04A040
- Current Rating
- 20 A
- Material
- Nylon
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.15 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 24.450 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 39.200 in
- Pallet Weight
- 880.200 lb.
- NAICS Code
- 335931A102
Current / Amperage Rating20 A
Height1.15 in
Industry Standard(s)Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
ApplicationHubbell-Pro Heavy Duty Hospital Grade
Dielectric StrengthWithstands 2,000V minimum
NEMA Rating5-20R
Number of Wires3-Wire
Size3.28 in x 1.57 in x 1.15 in
StandardCertified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
Voltage Rating125 VAC
Wire Size#12 AWG to #10 AWG
Weight0.1 lb.
Engineering Drawing 1 Display Text8300WL AutoCAD Drawing
General Literature Asset 2 Display TextHubbell-Pro Hospital Grade Receptacles
Display SizeStandard Sized Product
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Replacement Catalog NumberBRY8300WL
Material - Mounting HardwareScrew Mounting
Indicator(s) TypeGreen LED
SeriesHubbell-Pro
BOX SIZE3.700x9.900x4.600 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585196923
Case - Total Units100 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585196922
Pallet Length48.000 in
Pallet Width40.000 in
