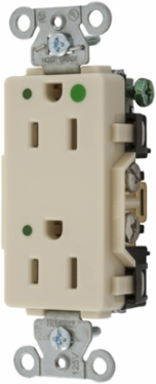

Hubbell Wiring Device-Kellems 2172IVL Hospital Grade Decorator Duplex Receptacle, 15A 125V, LED Indicator, Ivory
- MPN: 2172IVL
- UPC: 783585196220
- PPN: HBL-2172IVL
- UNSPSC: 39121406
CAD
$37.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Decorator Duplex Receptacle, Hospital Grade, Hubbell-Pro, LED Indicator, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Ivory.
Features
- Green LED Power Indicators to identify emergency circuits
- Triple wipe contacts
- High impact resistant decorator face
- Steel mounting strap
- Self Grounding, LED Indicator, USA Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Dimensions
- 3.28 in x 1.57 in x 1.15 in
- Horsepower - Maximum
- 0.5
- Length
- 3.28 in
- Amperage Rating
- 15 A
- Color
- Ivory
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Self Grounding, LED Indicator, USA Product
- Type
- Duplex Receptacle
- Wattage
- 1875 W
- Voltage Rating Description
- 125 V
- Width
- 1.57 in
- General Literature Asset 1 Display Text
- Duct Products Guide
- Connectivity
- Back and Side Wired Screw Terminals
- Nema Rating
- 5-15R
- Number Of Wires
- 3-Wire
- Style
- Style Line decorator
- Description - Invoice
- HUBBELL-PRO HG DECO 15A/125V LED IV
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Indicator(s) Type
- Green LED
- Series
- Hubbell-Pro
- BOX SIZE
- 3.548x9.858x4.298 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585196220
- Case Weight
- 15.000 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating15 A
Height1.15 in
Industry Standard(s)Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
ApplicationHubbell-Pro Heavy Duty Hospital Grade
Dielectric StrengthWithstands 2,000V minimum
NEMA Rating5-15R
Number of Wires3-Wire
Size3.28 in x 1.57 in x 1.15 in
StandardCertified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
Voltage Rating125 VAC
Wire Size#14 AWG to #10 AWG
Weight0.15 lb.
Engineering Drawing 1 Display Text2172IVL AutoCAD Drawing
General Literature Asset 2 Display TextHubbell-Pro Hospital Grade Receptacles
Display SizeStandard Sized Product
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA04A040
Current Rating15 A
MaterialNylon
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.600 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
NAICS Code335931A102
