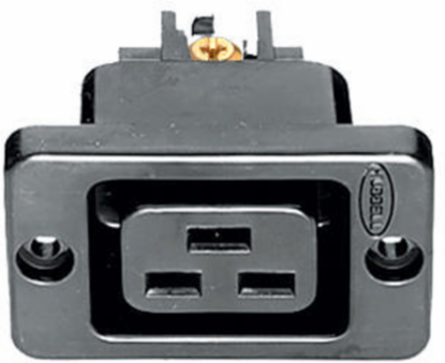

Hubbell Wiring Device-Kellems H320RRT IEC 320 Female Receptacle, 16A 250V, 1.41 Inch x 1.89 Inch x 1.52 Inch, Ring Terminal
- MPN: H320RRT
- UPC: 783585777016
- PPN: HBL-H320RRT
- UNSPSC: 39121406
CAD
$36.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Straight Blade Devices, IEC 320 Devices, Female Receptacle, 16A 250V, International Rated, Ring Terminal, Black, Single Pack.
Features
- Compatible with IEC320
- Low profile
- Impact resistant
- Ring Terminal
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Dimensions | 1.41 in x 1.89 in x 1.52 in |
| Industry Standard(s) | CSA certified 20A 250V AC-File No. 17337;UL Recognized |
| Performance | Electrical:Dielectric Voltage Withstands 2,000V minimum,Rating 16A 250V AC for European service;20A 250V AC for ,North American service;Mechanical:Cord Accommodation .325" - .475" (8.0-12.0)Terminal Accommodation North American – #16-12 AWG stranded or solid copper conductor only. International – 1.55mm²-2.5mm² ,Terminal Identification Terminals identified in accordance with UL 498 and CSA;Environmental:Flammability UL 94 HB or betterIP Suitability IP20Operating Temperatures Maximum continuous 75°C;minimum -40°C (w/o impact) |
| Application | Heavy Duty |
| Dielectric Strength | Withstands 2,000V minimum |
| NEMA Rating | Non-NEMA |
| Number of Wires | 3-Wire |
| Size | 1.41 in x 1.89 in x 1.52 in |
| Standard | CSA certified 20A 250V AC-File No. 17337;UL Recognized |
| Wattage | 7500 W |
| Voltage Rating Description | 250 V |
| Width | 1.89 in |
| Connectivity | Ring Terminal |
| Nema Rating | Non-NEMA |
| Number Of Wires | 3-Wire |
| Class Code | A04 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A04A070 |
| Current Rating | 20/16 A |
| BOX SIZE | 3.800x9.900x4.500 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585777016 |
| Case - Total Units | 30 EA |
| Each - Pack Description | Each |
| Pallet - GTIN - Package | 70783585777015 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| Current / Amperage Rating | 20/16 A |
|---|---|
| Height | 1.52 in |
| Length | 1.41 in |
| Amperage Rating | 20/16 A |
| Color | Black |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Number of Poles | 2-Pole |
| Phase | Single Phase |
| Special Features | Ring Terminal |
| Voltage Rating | 250 V |
| Wire Size | North American-#16AWG-#12AWG; International-1.55mm²-2.5mm². |
| Weight | 0.4 lb. |
| Engineering Drawing 1 Display Text | H320RRT AutoCAD Drawing |
| Display Size | Standard Sized Product |
| Number Of Poles | 2-Pole |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Description - Invoice | CAT #H320R, MOD RING TERM |
| Harmonization Code | 8536698000 |
| MSDS Flag | No |
| Material - Mounting Hardware | Screw Mounting |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 1.65 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Case Weight | 4.850 lb. |
| Lowest Level UOM | Each |
| Pallet Height | 47.200 in |
| Pallet Weight | 426.800 lb. |
| NAICS Code | 335931A102 |
