Bryant

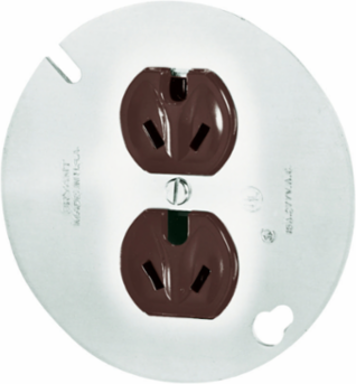

Bryant 5782 Specialty Receptacle, 15A 277V AC, 2-Pole 3-Wire, 4 Inch Round Cover, Brown

Specialty Receptacle, 15A 277V AC, 2-Pole 3-Wire, 4 Inch Round Cover, Brown
  • MPN: 5782
  • UPC: 781786626287
  • PPN: HBL-5782
  • UNSPSC: 39121406

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$97.55/ EA

Description

Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 277V AC, 7- 15R, Brown, Single Pack, Mounted to 4" Round Cover

Features

  • Duplex
  • Commercial/Industrial Grade
  • 2-Pole 3-Wire Grounding
  • 15A 277V AC
  • 7- 15R
  • Mounted to 4" Round Cover

Specifications

Specifications

Country of Origin
United States
Dimensions
3.28 in x 1.38 in x 0.86 in
Length
3.28 in
Application
Extra Heavy Duty Industrial Specification Grade
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Number of Poles
2-Pole
Phase
Single Phase
Special Features
Mounted to 4" Round Cover
Voltage Rating
277 V
Wire Size
#14 AWG to #12 AWG
Weight
0.35 lb.
Connectivity
Back and Side Wired
Nema Rating
7-15R
Number Of Wires
3-Wire
Class Code
A04
Freight Class Code
06168002
Image Actual Or Representative
A
Sub Class Code
A04A020
Current Rating
15 A
Base Unit of Measure
EA
Carton - Gross Weight per Pack
1.750 lb.
Carton - Pack Description
Carton
Carton - Total Units
10
Each - Pack Description
Each
Current / Amperage Rating15 A
Height0.86 in
Amperage Rating15 A
ColorBrown
NEMA Rating7-15R
Number of Wires3-Wire
Size3.28 in x 1.38 in x 0.86 in
TypeSpecialty Receptacle
Wattage4155
Voltage Rating Description277 V
Width1.38 in
Display SizeStandard Sized Product
Number Of Poles2-Pole
StyleFinder Groove Face
Description - InvoiceCAT#5762, MT TO 4" RND CVR
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
SeriesHeavy Duty
BOX SIZE3.168x8.548x4.228 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786626287
Case Weight5.250 lb.
Lowest Level UOMEach

Certifications

EU RoHS Indicator
Yes

Downloads
