Hubbell Wiring Device-Kellems HBL65W34 Watertight Twist-Lock Receptacle, 15A, 277V, 2-Pole, Yellow, 4.56 Inch
Hubbell Wiring Device-Kellems HBL65W34 Watertight Twist-Lock Receptacle, 15A, 277V, 2-Pole, Yellow, 4.56 Inch
- MPN: HBL65W34
- UPC: 783585456607
- PPN: HBL-HBL65W34
- UNSPSC: 39121406
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$159.22/ EA
Description

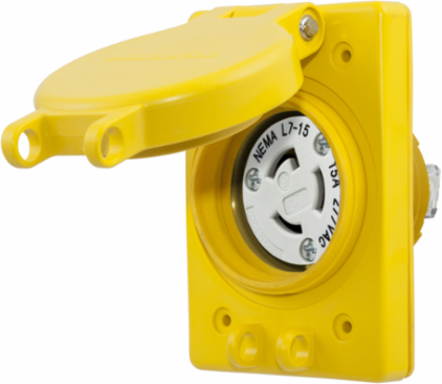

Watertight Devices, Twist-Lock® Receptacle with Lift Cover, 15A, 277VAC, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L7-15R, Yellow.
Features
- Impact resistant PBT lid, cover plate, and receptacle body
- Thermoplastic elastomer seal
- Stainless steel hardware and corrosion-resistant connection points
Specifications
- Amperage
- 15 A
- Number of Poles
- 2-Pole
- Device Color
- Yellow
- Width
- 3.10 in
- Size
- 4.56 in x 3.10 in x 2.66 in
- Type
- Receptacle
- Body Material
- PBT
- Hardware Material
- Stainless Steel
- Terminal Retainer Material
- Clear polycarbonate
- Core Material
- White Nylon
- Current Interrupting
- Rated for UL498 current interruption
- Temperature Rise
- 30 °C max
- Moisture Resistance
- UL Listed 4, 4X, 12, 6, 6P
- IP Rating
- IP69K
- Country of Origin
- US
Voltage277 VAC
Number of Wires3-Wire
Length4.56 in
Height2.66 in
Wire Size#18 AWG to #10 AWG
NEMA RatingL7-15R
Seal MaterialThermoplastic elastomer
Contact Carrier MaterialWhite Nylon
Contacts MaterialNickel plated brass
Terminal Screws MaterialNickel plated brass
Dielectric Voltage2500 VAC
Operating Temperature Range-40 °C to +60 °C continuous
UV ResistanceUV stabilized
Standards/ComplianceUL Listed; CSA Certified Type 4, 4X, 12, 6, 6P; UL498; CSA C22.2 No. 42; NEMA WD-1, WD-6; ANSI
