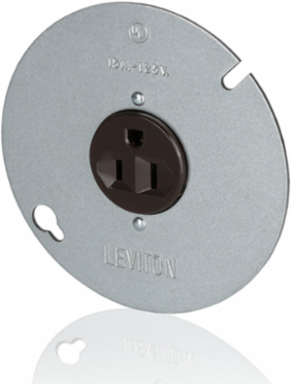

Leviton 5059 15 Amp Commercial Grade Single Receptacle Outlet, NEMA 5-15R, 125 Volt
- MPN: 5059
- UPC: 078477210901
- PPN: LEV-5059
CAD
$19.21
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

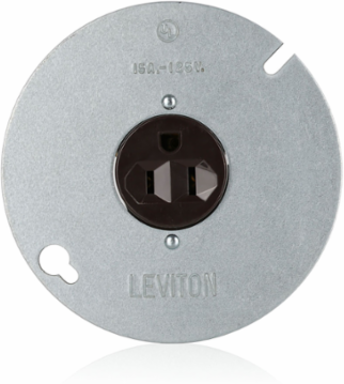

Single Receptacle Outlet, Commercial Specification Grade, Mounted to 4" Cover, 15 Amp, 125 Volt, Side Wire, NEMA 5-15R, 2-Pole, 3-Wire - Black
Features
- Leviton’s line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantTrue
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL
- 498
CSA CertifiedFile 152105
NOM Certified057
UL ListedFile E-13399
Material Specifications
- Body Material
- Nylon
- Face Material
- Nylon
ColorBrown
Strap MaterialSteel
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal ID
- Brass-Hot, Green-Ground, White-Neutral
Terminal Accom.14-10 AWG
TerminationSide Wire
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current InterruptingCertified for current interrupting at full rated current
GroundingGrounding
Temperature RiseMax 30C after 100 cycles OL at 150 percent rated current
Wire3
AC Horsepower Ratings
- Horsepower Rating
- 1/2 HP
