Hubbell Wiring Device-Kellems HBL5253 Industrial Grade Duplex Receptacle, 15A 125V, 2-Pole 3-Wire, Brown
- MPN: HBL5253
- UPC: 783585014159
- PPN: HBL-HBL5253
- UNSPSC: 39121406
CAD
$46.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

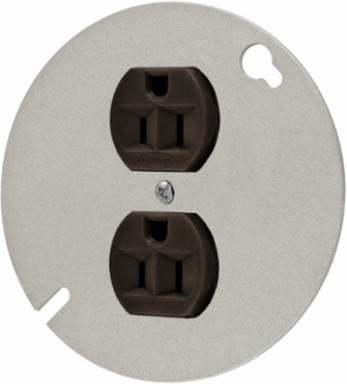

Straight Blade Devices, Receptacles, Duplex, Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Brown, Single Pack, Mounted to 4" Round Cover.
Features
- Slender/compact design
- Brass Mounting Strap
- Triple wipe contacts
- Mounted to 4" Round Cover
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 3.28 in x 1.33 in x 1.05 in
- Horsepower - Maximum
- 0.5
- Length
- 3.28 in
- Amperage Rating
- 15 A
- Color
- Brown
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Mounted to 4" Round Cover
- Voltage Rating
- 125 V
- Wire Size
- #14 AWG to #10 AWG
- Weight
- 0.3 lb.
- General Literature Asset 1 Display Text
- Pulp & Paper Solutions
- Connectivity
- Back and Side Wired
- Nema Rating
- 5-15R
- Number Of Wires
- 3-Wire
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 5253
- Material - Mounting Hardware
- Screw Mounting
- Material
- Nylon
- BOX SIZE
- 4.500x6.900x4.500 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585014159
- Case - Total Units
- 30 EA
- Each - Pack Description
- Each
- NAICS Code
- 335931A102
Current / Amperage Rating15 A
Height1.05 in
Industry Standard(s)Certified to CSA 22.2, No. 42 File 285;Fed. Spec. WC596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-0;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
ApplicationExtra Heavy Duty Compact
Dielectric StrengthWithstands 2,000V minimum
NEMA Rating5-15R
Number of Wires3-Wire
Size3.28 in x 1.33 in x 1.05 in
StandardCertified to CSA 22.2, No. 42 File 285;Fed. Spec. WC596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
Wattage1875 W
Voltage Rating Description125 V
Width1.33 in
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
Display SizeStandard Sized Product
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceCAT# 5252 ON RND 4" CVR, NEMA 5-15R
Harmonization Code8536698000
MSDS FlagNo
Sub Class CodeA04A020
Current Rating15 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.5 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Case Weight9.000 lb.
Lowest Level UOMEach
