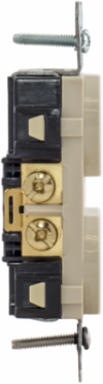

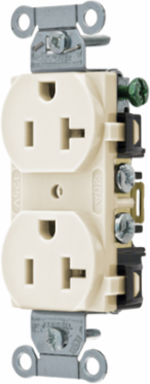

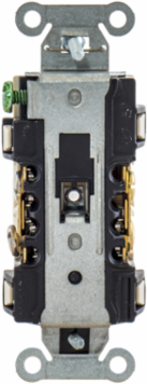

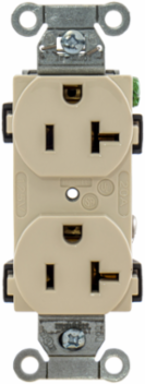

Hubbell Wiring Device-Kellems BR20LA Commercial Specification Grade Duplex Receptacles 20A 125V Light Almond
- MPN: BR20LA
- UPC: 783585127576
- PPN: HBL-BR20LA
CAD
$8.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Light Almond, Single Pack.
Features
- Easy access split circuit tab
- Nylon face and base
- Self Grounding
- Wrap-around galvanized steel strap
- Triple wipe contacts
Documentation & Downloads
Specifications
Key Specifications
- Application
- Commercial Specification Grade
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Item Type
- Traditional Duplex
- Material - Mounting Hardware
- Screw Mounting
- OEM Brand Name
- Hubbell Wiring Device-Kellems
- Series
- Commercial Specification Grade
- Type
- Standard Duplex
- Dimensions
- 1.32 in x 0.83 in x 3.28 in
- Height
- 3.28 in
- Weight
- 0.15 lb
- Amperage Rating
- 20 A
- Current / Amperage Rating
- 20 A
- Dielectric Strength
- Withstands 2,000V minimum
- Voltage Rating
- 125 V
- Wattage
- 2500 W
- Wire Size
- #12 AWG to #10 AWG
- Carton Quantity
- 10 EA
ColorLight Almond
Horsepower - Maximum1
MaterialNylon
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StyleSmooth Face
UPC783585127576
Display SizeStandard Sized Product
Length1.32 in
Width0.83 in
ConnectivityBack and Side Wired
Current Rating20 A
PhaseSingle Phase
Voltage Rating Description125 V
Number Of Wires3-Wire
Nema Rating5-20R
