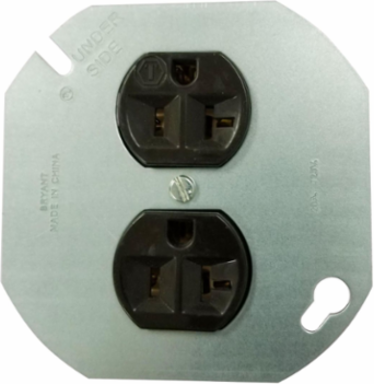

Bryant BRY5382 Specialty Duplex Receptacle, 20A 125V, 2-Pole 3-Wire, Brown, 5-20R
- MPN: BRY5382
- UPC: 781786005341
- PPN: HBL-BRY5382
- UNSPSC: 39121406
CAD
$111.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, Specialty, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Brown, Single Pack
Features
- Duplex
- Commercial/Industrial Grade
- Specialty
- 20A 125V
- 2-Pole 3-Wire Grounding
- Mounted to 4" Octagon Cover
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 3.600 in
- Application
- Extra Heavy Duty Industrial Specification Grade
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Type
- Specialty Receptacle
- Wattage
- 2500
- Voltage Rating Description
- 125 V
- Connectivity
- Back and Side Wired
- Nema Rating
- 5-20R
- Number Of Wires
- 3-Wire
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 5382
- Material - Mounting Hardware
- Screw Mounting
- Series
- Extra Heavy Duty
- BOX SIZE
- 3.168x8.548x4.228 (in)
- Carton - Number of Sub Packs
- 25
- Carton - SCC-14 Next Lower Level Sub Pack
- 781786005341
- Case Weight
- 5.250 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating20 A
Amperage Rating20 A
ColorBrown
NEMA Rating5-20R
Number of Wires3-Wire
Special FeaturesMounted to 4" Octagon Cover
Voltage Rating125 V
Wire Size#14 AWG to #12 AWG
Weight0.35 lb.
Display SizeStandard Sized Product
Number Of Poles2-Pole
StyleFinder Groove Face
Description - InvoiceCAT#BRY5352, MT TO 4" RND CVR
Harmonization Code8536698000
MSDS FlagNo
Sub Class CodeA04A020
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.750 lb.
Carton - Pack DescriptionCarton
Carton - Total Units25
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
