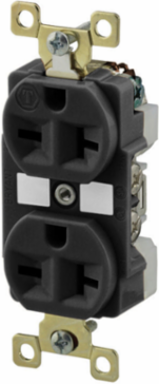

Bryant BRY5462BLK Duplex Receptacle, 20A 250V, 2-Pole 3-Wire, NEMA 6-20R, Commercial Grade
- MPN: BRY5462BLK
- UPC: 781786005365
- PPN: HBL-BRY5462BLK
- UNSPSC: 39121406
CAD
$158.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 20A 250V, 2-Pole 3-Wire Grounding, 6-20R, Black, Single Pack
Features
- Duplex
- Commercial/Industrial Grade
- 20A 250V
- 2-Pole 3-Wire Grounding
- 6-20R
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 3.28 in x 1.54 in x 1.16 in
- Length
- 3.28 in
- Amperage Rating
- 20 A
- Color
- Black
- NEMA Rating
- 6-20R
- Number of Wires
- 3-Wire
- Size
- 3.28 in x 1.54 in x 1.16 in
- Type
- Duplex Receptacle
- Wattage
- 5000
- Voltage Rating Description
- 250 V
- Width
- 1.54 in
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Style
- Finder Groove Face
- Description - Invoice
- DUP RCPT, IND GRD, 20A 250V, 6-20R, BK
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Sub Class Code
- A04A020
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 23.250 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating20 A
Height1.16 in
Standards - RoHS Compliance StatusCM
ApplicationExtra Heavy Duty Industrial Specification Grade
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesStandard Product
Voltage Rating250 V
Wire Size#14 AWG to #12 AWG
Weight0.25 lb.
ConnectivityBack and Side Wired
Nema Rating6-20R
Number Of Wires3-Wire
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number5462BLK
Material - Mounting HardwareScrew Mounting
SeriesExtra Heavy Duty
BOX SIZE2.900x8.600x5.300 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786005365
Case - Total Units100 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
