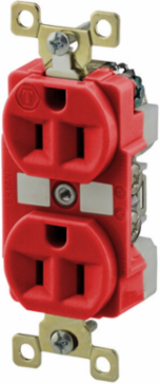

Bryant BRY5262RED Red Duplex Receptacle, Commercial Grade, 15A 125V, 2-Pole 3-Wire Grounding
- MPN: BRY5262RED
- UPC: 781786005051
- PPN: HBL-BRY5262RED
- UNSPSC: 39121406
CAD
$46.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade,15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Red, Single Pack
Features
- Duplex
- Commercial/Industrial Grade
- 15A 125V
- 2-Pole 3-Wire Grounding
- 5-15R
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- General Literature Asset 1 Display Text
- General Literature - BRYANT® Wiring Devices
- Current / Amperage Rating
- 15 A
- Height
- 1.16 in
- Standards - RoHS Compliance Status
- CM
- Application
- Extra Heavy Duty Industrial Specification Grade
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Standard Product
- Voltage Rating
- 125 V
- Wire Size
- #14 AWG to #12 AWG
- Weight
- 0.25 lb.
- Connectivity
- Back and Side Wired
- Nema Rating
- 5-15R
- Number Of Wires
- 3-Wire
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 5262RED
- Material - Mounting Hardware
- Screw Mounting
- Series
- Extra Heavy Duty
- BOX SIZE
- 2.548x8.418x4.918 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 781786005051
- Case - Total Units
- 100 EA
- Each - Pack Description
- Each
Country of OriginChina
Dimensions3.28 in x 1.54 in x 1.16 in
Length3.28 in
Amperage Rating15 A
ColorRed
NEMA Rating5-15R
Number of Wires3-Wire
Size3.28 in x 1.54 in x 1.16 in
TypeDuplex Receptacle
Wattage1875
Voltage Rating Description125 V
Width1.54 in
Display SizeStandard Sized Product
Number Of Poles2-Pole
StyleFinder Groove Face
Description - InvoiceDUP RCPT, IND GRD, 15A 125V, 5-15R, RD
Harmonization Code8536690200
MSDS FlagNo
Sub Class CodeA04A020
Current Rating15 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight25.000 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
