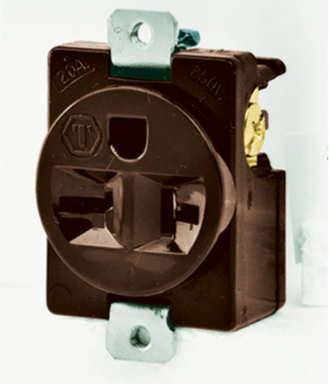

Bryant 5484 Commercial Grade Panel Mount Receptacle, 20A 250V, 2-Pole 3-Wire, Brown
- MPN: 5484
- UPC: 781786663008
- PPN: HBL-5484
- UNSPSC: 39121406
CAD
$53.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Panel Mount Single, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Brown, Single Pack
Features
- Panel Mount Single
- Commercial/Industrial Grade
- 2-Pole 3-Wire Grounding
- 20A 125V
- 5-20R
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Dimensions
- 1.94 in x 1.38 in x 0.81 in
- Length
- 1.94 in
- Application
- Extra Heavy Duty Industrial Specification Grade
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Standard Product
- Voltage Rating
- 250 V
- Wire Size
- #14 AWG to #12 AWG
- Weight
- 0.05 lb.
- Connectivity
- Back and Side Wired
- Nema Rating
- 6-20R
- Number Of Wires
- 3-Wire
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A04A020
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.100 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 5.000 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating20 A
Height0.81 in
Amperage Rating20 A
ColorBrown
NEMA Rating6-20R
Number of Wires3-Wire
Size1.94 in x 1.38 in x 0.81 in
TypeSpecialty Receptacle
Wattage5000
Voltage Rating Description250 V
Width1.38 in
Display SizeStandard Sized Product
Number Of Poles2-Pole
StyleFinder Groove Face
Description - InvoiceSGL PANEL RCPT, 20A 250V, 6-20R, BK
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
SeriesExtra Heavy Duty
BOX SIZE2.548x8.418x4.918 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786663008
Case - Total Units100 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
