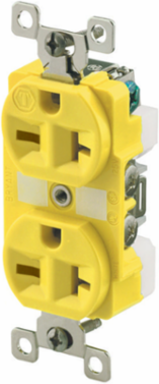

Bryant BRY5462CR Duplex Receptacle, 20A 250V, 2-Pole 3-Wire, Corrosion Resistant, Yellow
Bryant BRY5462CR Duplex Receptacle, 20A 250V, 2-Pole 3-Wire, Corrosion Resistant, Yellow
- MPN: BRY5462CR
- UPC: 781786005419
- PPN: HBL-BRY5462CR
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$106.66/ EA
Description
Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, Corrosion Resistant, 20A 250V, 2-Pole 3-Wire Grounding, 6-20R, Yellow, Single Pack
Features
- Duplex
- Commercial/Industrial Grade
- Corrosion Resistant
- 20A 250V
- 2-Pole 3-Wire Grounding
Specifications
Specifications
- Country of Origin
- CN
- Dimensions
- 3.28 in x 1.54 in x 1.16 in
- Height
- 1.16 in
- Standards - RoHS Compliance Status
- CM
- Application
- Extra Heavy Duty Industrial Specification Grade
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Corrosion Resistant
- Voltage Rating
- 250 V
- Wire Size
- #14 AWG to #12 AWG
- Weight
- 0.2 lb.
- Connectivity
- Back and Side Wired
- Nema Rating
- 6-20R
- Number Of Wires
- 3-Wire
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 5462CR
- Material - Mounting Hardware
- Screw Mounting
- Series
- Extra Heavy Duty
- BOX SIZE
- 2.800x8.400x5.300 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 781786005419
- Case - Total Units
- 100 EA
- Each - Pack Description
- Each
Current / Amperage Rating20 A
Each - Width2.000 in
Length3.28 in
Amperage Rating20 A
ColorYellow
NEMA Rating6-20R
Number of Wires3-Wire
Size3.28 in x 1.54 in x 1.16 in
TypeDuplex Receptacle
Wattage5000
Voltage Rating Description250 V
Width1.54 in
Display SizeStandard Sized Product
Number Of Poles2-Pole
StyleFinder Groove Face
Description - InvoiceDUP RCPT, CM, 20A 250V, 6-20R, YL
Harmonization Code8536698000
MSDS FlagNo
Sub Class CodeA04A020
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.35 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight24.000 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
