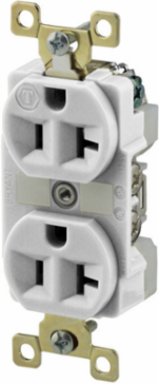

Bryant BRY5362WWR Duplex Receptacle, 20A 125V, Weather Resistant, 2-Pole 3-Wire, White
Bryant BRY5362WWR Duplex Receptacle, 20A 125V, Weather Resistant, 2-Pole 3-Wire, White
- MPN: BRY5362WWR
- UPC: 781786670631
- PPN: HBL-BRY5362WWR
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$72.52/ EA
Description
Straight Blade Devices, Receptacles, Duplex, Weather Resistant, Commercial/Industrial Grade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, White, Single Pack
Features
- Duplex
- Weather Resistant
- Commercial/Industrial Grade
- 20A 125V
- 2-Pole 3-Wire Grounding
Specifications
Specifications
- Country of Origin
- CN
- Dimensions
- 3.28 in x 1.54 in x 1.16 in
- Height
- 1.16 in
- Amperage Rating
- 20 A
- Color
- White
- NEMA Rating
- 5-20R
- Number of Wires
- 3-Wire
- Size
- 3.28 in x 1.54 in x 1.16 in
- Type
- Duplex Receptacle
- Wattage
- 2500
- Voltage Rating Description
- 125 V
- Width
- 1.54 in
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Style
- Finder Groove Face
- Description - Invoice
- WR RCPT, DUP, SB, IND GRD, 20A 125V, WH
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Series
- Extra Heavy Duty
- BOX SIZE
- 2.900x8.600x5.400 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 781786670631
- Case Weight
- 23.350 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating20 A
Each - Width1.900 in
Length3.28 in
ApplicationExtra Heavy Duty Industrial Specification Grade
Environmental ConditionsWeather Resistant
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesWeather Resistant
Voltage Rating125 V
Wire Size#14 AWG to #12 AWG
Weight0.25 lb.
ConnectivityBack and Side Wired
Nema Rating5-20R
Number Of Wires3-Wire
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA04A020
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack4.050 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
