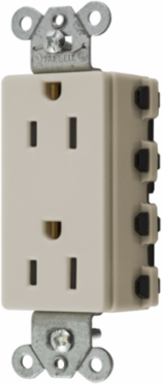

Hubbell Wiring Device-Kellems SNAP2152LAA SnapConnect Receptacle, 15A 125V, Light Almond, 3-Wire Grounding
Hubbell Wiring Device-Kellems SNAP2152LAA SnapConnect Receptacle, 15A 125V, Light Almond, 3-Wire Grounding
- MPN: SNAP2152LAA
- UPC: 783585248127
- PPN: HBL-SNAP2152LAA
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$17.91/ EA
Description
Straight Blade Devices, Receptacles, Style Line Decorator Duplex, SNAPConnect 2, 15A 125V, 2-Pole 3-Wire Grounding, 5- 15R, Light Almond.
Features
- Aesthetic Style Line® decorator design
- Audible SNAP, indicates solid connection
- Reduces installation time
- Fully insulated design
Specifications
Dimensions
- Dimensions
- 3.28 in x 1.64 in x 1.1 in
- Height
- 1.1 in
- Width
- 1.64 in
Display SizeStandard Sized Product
Length3.28 in
Certifications and Compliance
- Nema Rating
- 5-15R
Conductor Related
- Number Of Conductors
- 3-Wire Grounding
- Wire Size
- #12 AWG
Number Of Wires3-Wire
General
- Application
- Extra Heavy Duty Specification Grade
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Item Type
- Style Line Decorator
- Material - Mounting Hardware
- Screw Mounting
- OEM Brand Name
- Hubbell Wiring Device-Kellems
- Series
- Extra Heavy Duty
- Type
- Standard Duplex
ColorLight Almond
Horsepower - Maximum0.5
MaterialNylon
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StyleStyle Line Decorator
UPC783585248127
Electrical Ratings
- Amperage Rating
- 15 A
- Current / Amperage Rating
- 15 A
- Dielectric Strength
- Withstands 2,000V minimum
- Voltage Rating
- 125 V
- Wattage
- 1875 W
ConnectivityConnectorized
Current Rating15 A
PhaseSingle Phase
Voltage Rating Description125 V
Logistics
- Carton Quantity
- 10 EA
