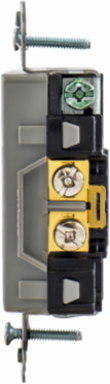

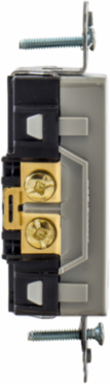

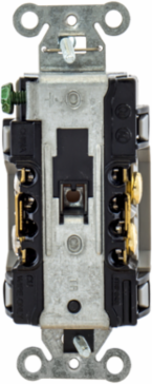

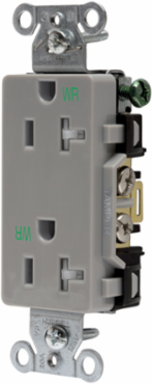

Hubbell Wiring Device-Kellems DR20GRYWRTR Tamper & Weather Resistant Duplex Receptacle 20A 125V 1.32 Inch x 1.07 Inch x 3.28 Inch
Hubbell Wiring Device-Kellems DR20GRYWRTR Tamper & Weather Resistant Duplex Receptacle 20A 125V 1.32 Inch x 1.07 Inch x 3.28 Inch
- MPN: DR20GRYWRTR
- UPC: 783585144849
- PPN: HBL-DR20GRYWRTR
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$27.65/ EA
Description
Straight Blade Tamper and Weather Resistant Duplex Receptacle, Decorator/Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R
Features
- Weather-resistance complies with national electrical code requirements
- Tamper-resistant shutter complies with national electrical code requirements
- Aesthetic Style Line® decorator design
- Smooth face
- Triple wipe contacts
- Tamper Resistant
Specifications
Specifications
- Country of Origin
- China
- Dimensions
- 1.32 in x 1.07 in x 3.28 in
- Horsepower - Maximum
- 1
- Length
- 1.32 in
- Amperage Rating
- 20 A
- Color
- Gray
- Environmental Conditions
- Weather Resistant
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Tamper Resistant
- Type
- Tamper-Resistant, Weather Resistant
- Wattage
- 2500 W
- Voltage Rating Description
- 125 V
- Width
- 1.07 in
- General Literature Asset 1 Display Text
- EdgeConnect™ Technology FAQ
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A04A060
- Current Rating
- 20 A
- Series
- Commercial Specification Grade
- BOX SIZE
- 2.700x8.100x4.500 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585144849
- Case - Total Units
- 100 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585144848
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating20 A
Height3.28 in
Industry Standard(s)Certified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
ApplicationCommercial Specification Grade
Dielectric StrengthWithstands 2,000V minimum
NEMA Rating5-20R
Number of Wires3-Wire
Size1.32 in x 1.07 in x 3.28 in
StandardCertified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
Voltage Rating125 V
Wire Size#12 AWG to #10 AWG
Weight0.2 lb.
Engineering Drawing 1 Display TextDR20GRYWRTR AutoCAD Drawing
ConnectivityBack and Side Wired
Nema Rating5-20R
Number Of Wires3-Wire
StyleStyle Line Decorator
Description - InvoiceWTR/TAMP RES, DECO FACE, 20A 125V, GY
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialNylon
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.05 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight20.350 lb.
Lowest Level UOMEach
Pallet Height42.500 in
Pallet Weight1628.000 lb.
Certifications
- EU RoHS Indicator
- Yes
