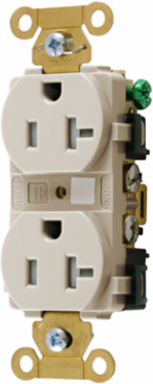

Hubbell Wiring Device-Kellems HBL5362LATR Tamper Resistant Duplex Receptacle 20A 125V Light Almond
- MPN: HBL5362LATR
- UPC: 783585542522
- PPN: HBL-HBL5362LATR
- UNSPSC: 39121406
CAD
$40.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Receptacles, Tamper Resistant,Duplex, Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Light Almond, Single Pack
Features
- Patented TR design eliminates plug-in difficulty and TR complaints
- Fed-Spec UL listing insures proven performance in demanding applications
- Brass mounting strap and Triple Wipe contacts
- High impact resistant face with circuit I.D. marking area
- Complies with National Electrical Code (NEC®) requirements for Tamper Resistant receptacles
- Tamper Resistant
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Horsepower - Maximum
- 1
- Length
- 3.28 in
- Amperage Rating
- 20 A
- Color
- Light Almond
- NEMA Rating
- 5-20R
- Number of Wires
- 3-Wire
- Standard
- CSA Certified 22.2, No. 42;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Voltage Rating
- 125 VAC
- Wire Size
- #12 AWG to #10 AWG
- Weight
- 0.2 lb.
- Engineering Drawing 1 Display Text
- HBL5362LATR AutoCAD Drawing
- General Literature Asset 2 Display Text
- Tamper-Resistant Receptacles
- Connectivity
- Back and Side Wired Screw Terminals
- Nema Rating
- 5-20R
- Number Of Wires
- 3-Wire
- Style
- Smooth Face
- Description - Invoice
- DUP RCPT, IND, TR, 20A/125V, 5-20R, LA
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Series
- Extra Heavy Duty
- BOX SIZE
- 3.700x10.000x4.600 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585542522
- Case - Total Units
- 100 EA
- NAICS Code
- 335931A102
Current / Amperage Rating20 A
Industry Standard(s)CSA Certified 22.2, No. 42;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
ApplicationExtra Heavy Duty Specification Grade
Dielectric StrengthWithstands 2,000V minimum
Number of Poles2-Pole
Special FeaturesTamper Resistant
TypeTamper-Resistant
Wattage2500 W
Voltage Rating Description125 V
Width1.32 in
General Literature Asset 1 Display TextHeavy Duty Tamper-Resistant Receptacles
General Literature Asset 3 Display TextPulp & Paper Solutions
Display SizeStandard Sized Product
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA04A060
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.050 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight25.200 lb.
