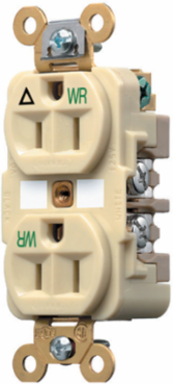

Hubbell Wiring Device-Kellems IG5262IWR Weather Resistant Duplex Receptacle, 15A 125V, 2-Pole 3-Wire, Ivory
- MPN: IG5262IWR
- UPC: 783585320397
- PPN: HBL-IG5262IWR
- UNSPSC: 39121406
CAD
$51.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Straight Blade Devices, Receptacles, Weather Resistant Duplex, Commercial/Industrial Grade, Isolated Ground, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Ivory.
Features
- Triangle marking on face indicates isolated ground
- Weather-resistance complies with national electrical code requirements
- Slender/compact design
- Isolated Ground and Weather Resistant
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Dimensions
- 3.28 in x 1.33 in x 1.05 in
- Horsepower - Maximum
- 0.5
- Length
- 3.28 in
- Amperage Rating
- 15 A
- Color
- Ivory
- Environmental Conditions
- Weather Resistant
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Isolated Ground and Weather Resistant
- Type
- Standard Duplex
- Wattage
- 1875 W
- Voltage Rating Description
- 125 V
- Width
- 1.33 in
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A04A060
- Current Rating
- 15 A
- Series
- Heavy Duty
- BOX SIZE
- 3.238x9.178x4.298 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585320397
- Each - Pack Description
- Each
- NAICS Code
- 335931A102
Current / Amperage Rating15 A
Height1.05 in
Industry Standard(s)Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. WC596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
ApplicationExtra Heavy Duty Specification Grade
Dielectric StrengthWithstands 2,000V minimum
NEMA Rating5-15R
Number of Wires3-Wire
Size3.28 in x 1.33 in x 1.05 in
StandardCertified to CSA, C22.2, No. 42 File 285;Fed. Spec. WC596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
Voltage Rating125 V
Wire Size#14 AWG to #10 AWG
Weight0.2 lb.
ConnectivityBack and Side Wired Screw Terminals
Nema Rating5-15R
Number Of Wires3-Wire
StyleFinder Groove Face
Description - InvoiceWR RCPT, DUP, SB, IG HG, 15A 125V, IV
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialNylon
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.600 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Lowest Level UOMEach
