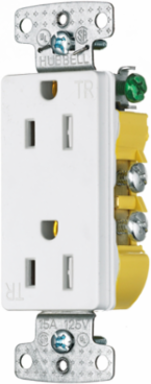

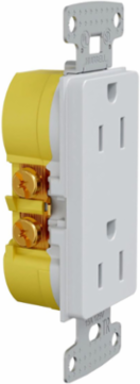

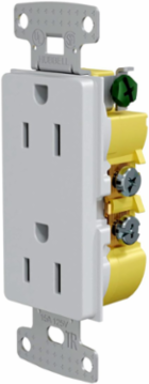

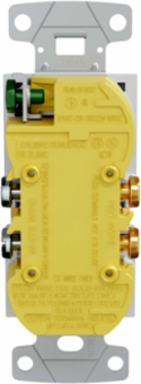

Hubbell Wiring Device-Kellems RRD15SWTR Residential Grade Tamper Resistant Duplex Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, White
- MPN: RRD15SWTR
- UPC: 883778301681
- PPN: HBL-RRD15SWTR
- UNSPSC: 39121406
CAD
$7.20
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TradeSelect, Straight Blade Devices, Residential Grade, Receptacles, Tamper Resistant Decorator Duplex, Self Grounding, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, White
Features
- Residential Grade
- Receptacles
- Tamper Resistant Decorator Duplex
- Tamper Resistant- Self Grounding
Documentation & Downloads
Specifications
Key Specifications
| Engineering Drawing 1 Display Text | RRD15SWTR AutoCAD Drawing |
|---|---|
| General Literature Asset 3 Display Text | Tamper-Resistant Receptacles for Residential Applications |
| Current / Amperage Rating | 15 A |
| Standards - RoHS Compliance Status | CM |
| Application | Residential Receptacles |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Number of Poles | 2-Pole |
| Phase | Single Phase |
| Voltage Rating | 125 VAC |
| Wire Size | #14 AWG to #12 AWG |
| General Literature Asset 1 Display Text | Residential Catalog |
| Display Size | Standard Sized Product |
| Number Of Poles | 2-Pole |
| Class Code | A80 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | RRD15SW |
| Material - Mounting Hardware | Screw Mounting |
| Material | Thermoplastic |
| BOX SIZE | 2.400x8.100x4.300 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 883778301681 |
| Case - Total Units | 200 EA |
| Each - Pack Description | Each |
| Pallet Height | 42.000 in |
| Pallet Weight | 1368.000 lb. |
| NAICS Code | 335931A102 |
| General Literature Asset 2 Display Text | Residential Product Guide |
|---|---|
| Country of Origin | China |
| Width | 1.900 in |
| Amperage Rating | 15 A |
| Color | Blanc |
| NEMA Rating | 5-15R |
| Number of Wires | 3-Wire Grounding |
| Special Features | Tamper Resistant- Self Grounding |
| Wattage | 1875 |
| Voltage Rating Description | 125 VAC |
| Connectivity | Push and Side Wire |
| Nema Rating | 5-15R |
| Number Of Wires | 3-Wire Grounding |
| Description - Invoice | RCPT, DUP, DEC, TR, 15A 125V, WH |
| Harmonization Code | 8536699999 |
| MSDS Flag | No |
| Sub Class Code | A80A805 |
| Current Rating | 15 A |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 1.350 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Case Weight | 30.000 lb. |
| Lowest Level UOM | Each |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
