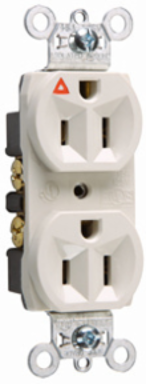

Pass & Seymour IG5262W 15A 125V Isolated Ground Duplex Receptacle, White, 1.322 Inch Width, 2.635 Inch Height
- MPN: IG5262W
- UPC: 785007045291
- PPN: P-S-IG5262W
CAD
$10.28
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
15A 125V Isolated Ground Duplex Receptacle, White, 1.322 Inch Width, 2.635 Inch Height
Features
- IG symbol and Isolated Ground markings for easy identification and circuit delineation.
- Face color coding by voltage facilitates locating and mating of proper devices.
- High-impact resistant nylon face resists impacts and scrapes.
- Corrosion-resistant plated steel strap.
- Patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
- Plastic barrier isolates grounding terminal from mounting strap and metal boxes.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.922 in
- Special Features
- IG symbol and Isolated Ground markings for easy identification and circuit delineation. Triple-wipe brass contacts ensure lasting, positive contact with plug blades. High-impact resistant nylon face resists impacts and scrapes. Corrosion-resistant plated steel strap. Patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation. Plastic barrier isolates grounding terminal from mounting strap and metal boxes. Side and internal screw-pressure-plate back wire capability with #14 - #10 AWG copper or copper-clad, solid or stranded wire. Auto-ground clip assures positive ground.
- Width
- 1.322 in
- Country of Origin
- Mexico
- Amperage
- 15.0 A
- Standard
- FEDSPEC
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Standard
- CSA C22.2 No. 42
- Number of Poles
- Double Pole
- Outlet Type
- Tamper-Resistant
- NEMA Configuration Code
- 5-15R
- Wire Connection Type
- Screw Terminals
- Dielectric Strength
- Withstands 2000V minimum
- Features
- Single Piece Plated Steel Mounting Strap
Height2.635 in
ColorWhite
Product LinePass & Seymour
StandardUL498
Voltage125.0 V
Number of Wires3.0
Wire Size14 - 10 AWG
Number of Receptacles2.0
Outlet TypeStraight Blade
Outlet TypeIsolated Ground
Application SectorCommercial
Connection LocationBack and Side
Warranty Type1-Year Limited Warranty
Environmental ConditionsFlammability: UL94 V2
