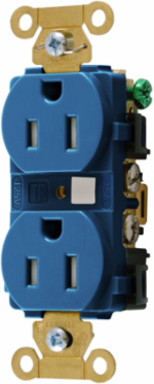

Hubbell Wiring Device-Kellems HBL5262BLTR Tamper Resistant Duplex Receptacle 15A 125V 2-Pole 3-Wire Grounding Blue
Hubbell Wiring Device-Kellems HBL5262BLTR Tamper Resistant Duplex Receptacle 15A 125V 2-Pole 3-Wire Grounding Blue
- MPN: HBL5262BLTR
- UPC: 783585542409
- PPN: HBL-HBL5262BLTR
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$29.31/ EA
Description
Straight Blade Devices, Tamper Resistant Duplex Receptacle, Industrial Grade, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Blue.
Features
- Patented TR design eliminates plug-in difficulty and TR complaints
- Fed-Spec UL listing insures proven performance in demanding applications
- Brass mounting strap and Triple Wipe contacts
- High impact resistant face with circuit I.D. marking area
- Complies with National
- Electrical Code (NEC®) requirements forTamper Resistant receptacles
- Tamper Resistant
Specifications
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Specifications
- Country of Origin
- MX
- Each - Width
- 1.910 in
- Industry Standard(s)
- CSA Certified 22.2, No. 42;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Performance
- Electrical: Current Interrupting: Certified for current interrupting at full rated current;Dielectric Voltage: Withstands 2,000V minimum;Mechanical:Product Identification: Ratings are a permanent part of the device;Terminal Accommodation: #12-10 AWG stranded or solid copper wire only;Terminal Identification :Terminals identified in accordance with UL 498 and CSA;Environmental: Flammability: UL 94V-2;Operating Temperature: Maximum continuous 75°C;minimum -40°C (w/o impact)
- Application
- Extra Heavy Duty Specification Grade
- Dielectric Strength
- Withstands 2,000V minimum
- Number of Poles
- 2-Pole
- Special Features
- Tamper Resistant
- Type
- Tamper-Resistant
- Wattage
- 1875 W
- Voltage Rating Description
- 125 V
- Width
- 1.32 in
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A04A060
- Current Rating
- 15 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.100 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 20.000 lb.
Current / Amperage Rating15 A
Horsepower - Maximum0.5
Length3.28 in
Amperage Rating15 A
ColorBlue
NEMA Rating5-15R
Number of Wires3-Wire
StandardCSA Certified 22.2, No. 42;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
Voltage Rating125 VAC
Wire Size#12 AWG to #10 AWG
Weight0.2 lb.
ConnectivityBack and Side Wired
Nema Rating5-15R
Number Of Wires3-Wire
StyleSmooth Face
Description - InvoiceDUP RCPT, IND, TR, 15A/125V, 5-15R, BL
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
SeriesExtra Heavy Duty
BOX SIZE3.548x9.858x4.298 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack00783585542409
Case - Total Units100 EA
