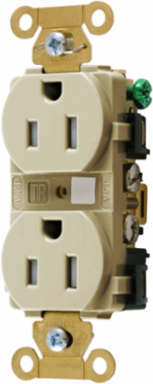

Hubbell Wiring Device-Kellems HBL5262ITR Tamper Resistant Duplex Receptacle, 15A 125V, 2-Pole 3-Wire, Ivory
- MPN: HBL5262ITR
- UPC: 783585542430
- PPN: HBL-HBL5262ITR
- UNSPSC: 39121406
CAD
$30.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Tamper Resistant Duplex Receptacle, Industrial Grade, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Ivory.
Features
- Patented TR design eliminates plug-in difficulty and TR complaints
- Fed-Spec UL listing insures proven performance in demanding applications
- Brass mounting strap and Triple Wipe contacts
- High impact resistant face with circuit I.D. marking area
- Complies with National Electrical Code (NEC®) requirements for Tamper Resistant receptacles
- Tamper Resistant
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- Wattage
- 1875 W
- Number of Wires
- 3-Wire Grounding
- Length
- 3.28 in
- Weight
- 0.2 lb.
- Material
- Nylon, PBT, Brass, Plated Steel, Stainless Steel, Zinc Plated Steel
- Dielectric Voltage
- 2000 V minimum
- NEMA Rating
- 5-15R
- Color
- Ivory
Voltage125 VAC
Number of Poles2-Pole
ConnectivityBack and Side Wired
Width1.91 in
Wire Size#14 AWG to #10 AWG
Flammability RatingUL 94V-2
Operating Temperature-40°C to 75°C
Compliance StandardsUL Listed to UL498 File No. E2186, CSA Certified 22.2 No. 42, Fed. Spec. W-C-596, NEMA WD-6 Compliant
Country of OriginMexico
