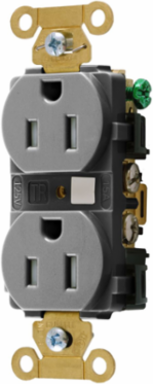

Hubbell Wiring Device-Kellems HBL5262GYTR Tamper Resistant Duplex Receptacle, 15A 125V, 2-Pole 3-Wire, Gray
- MPN: HBL5262GYTR
- UPC: 783585542423
- PPN: HBL-HBL5262GYTR
- UNSPSC: 39121406
CAD
$30.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Tamper Resistant Duplex Receptacle, Industrial Grade, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Gray.
Features
- Patented TR design eliminates plug-in difficulty and TR complaints
- Fed-Spec UL listing insures proven performance in demanding applications
- Brass mounting strap and Triple Wipe contacts High impact resistant face with circuit I.D. marking area
- Complies with National Electrical Code (NEC®) requirements for Tamper Resistant receptacles
- Tamper Resistant
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- Wattage
- 1875 W
- Number of Wires
- 3-Wire Grounding
- Length
- 3.28 in
- Material - Mounting Hardware
- Screw Mounting
- Wire Size
- #12 AWG to #10 AWG
- Material Base
- PBT
- Material Ground Contact
- Brass
- Material Mounting Strap
- Brass
- Material Mounting Screws
- Zinc Plated Steel
- Compliance
- UL Listed, CSA Certified, Fed. Spec. W-C-596, NEMA WD-6
- Current Interrupting
- Certified at full rated current
- Country of Origin
- US
- Special Features
- Tamper Resistant
Voltage125 VAC
Number of Poles2-Pole
Operating Temperature-40°C to 75°C
Width1.32 in
ConnectivityBack and Side Wired
Material FaceNylon
Material Power ContactsBrass
Material Clamping PlatePlated Steel
Material Self-grounding StapleStainless Steel
Flammability RatingUL 94V-2
Dielectric Voltage Withstand2000 V minimum
ColorGray
StyleSmooth Face
