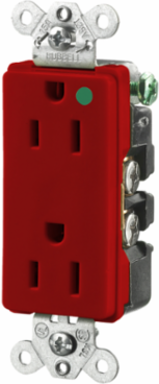

Hubbell Wiring Device-Kellems HBL2172R Duplex Receptacle, 15A 125V, 2-Pole, Hospital Grade, Red
- MPN: HBL2172R
- UPC: 783585060606
- PPN: HBL-HBL2172R
- UNSPSC: 39121406
CAD
$56.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Receptacles, Duplex, Hospital Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Red, Single Pack.
Features
- Aesthetic Style Line® decorator design
- High impact resistant face
- Triple wipe contacts
- Standard, Self Grounding
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 3.28 in x 1.36 in x 1.03 in
- Horsepower - Maximum
- 0.5
- Length
- 3.28 in
- Standards - RoHS Compliance Status
- CM
- Application
- Style Line Decorator Hospital Grade
- Dielectric Strength
- Withstands 2,000V minimum
- NEMA Rating
- 5-15R
- Number of Wires
- 3-Wire
- Size
- 3.28 in x 1.36 in x 1.03 in
- Standard
- CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Voltage Rating
- 125 VAC
- Wire Size
- #14 AWG to #10 AWG
- Weight
- 0.25 lb.
- Engineering Drawing 1 Display Text
- HBL2172R AutoCAD Drawing
- Connectivity
- Back and Side Wired Screw Terminals
- Nema Rating
- 5-15R
- Number Of Wires
- 3-Wire
- Style
- Style Line Decorator;Smooth Face
- Description - Invoice
- STYLE HG DUP RCPT, 15A 125V, 5-15R, RD
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Sub Class Code
- A04A040
- Current Rating
- 15 A
- Series
- Hospital Grade
- BOX SIZE
- 3.238x9.178x4.298 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585060606
- Case - Total Units
- 100 EA
- Each - Pack Description
- Each
- NAICS Code
- 335931A102
Current / Amperage Rating15 A
Height1.03 in
Industry Standard(s)CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-0;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Amperage Rating15 A
ColorRed
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesStandard, Self Grounding
TypeDuplex Receptacle
Wattage1875 W
Voltage Rating Description125 V
Width1.36 in
General Literature Asset 1 Display TextDuct Products Guide
Display SizeStandard Sized Product
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number2172R
Material - Mounting HardwareScrew Mounting
MaterialNylon
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.5 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight25.000 lb.
Lowest Level UOMEach
