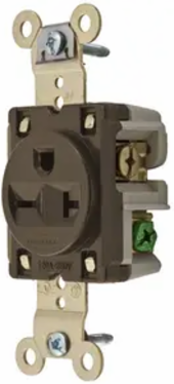

Hubbell Wiring Device-Kellems HBL5461 Straight Blade Receptacle, 2-Pole 3-Wire, 20A 250V, 6-20R, Brown
Hubbell Wiring Device-Kellems HBL5461 Straight Blade Receptacle, 2-Pole 3-Wire, 20A 250V, 6-20R, Brown
- MPN: HBL5461
- UPC: 783585013954
- PPN: HBL-HBL5461
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$30.86/ EA
Description
Straight Blade Devices, Receptacles, Single, Specification Grade, 2-Pole 3-Wire Grounding, 20A 250V, 6-20R, Brown, Single Pack
Features
- One-piece brass integral ground strap
- Unique bypass contact design
- Self Grounding
Specifications
Specifications
- Engineering Drawing 1 Display Text
- HBL5461 AutoCAD Drawing
- General Literature Asset 3 Display Text
- Pulp & Paper Solutions
- Current / Amperage Rating
- 20 A
- Height
- 1.19 in
- Industry Standard(s)
- Certified to CSA 22.2, No. 42 File 285;Guide RTRT Fed Spec WC596G;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
- Amperage Rating
- 20 A
- Color
- Brun
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Self Grounding
- Type
- Single Receptacle
- Wattage
- 5000 W
- Voltage Rating Description
- 250 V
- Width
- 1.63 in
- Connectivity
- Back and Side Wired Screw Terminals
- Nema Rating
- 6-20R
- Number Of Wires
- 3-Wire
- Style
- Finder Groove Face
- Description - Invoice
- SGL RCPT, IND GRD, 20A 250V, 6-20R, BR
- Harmonization Code
- 8536690200
- MSDS Flag
- No
- Sub Class Code
- A04A020
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.4 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 11.289 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 38.800 in
- Pallet Weight
- 876.600 lb.
General Literature Asset 2 Display TextIndustrial Solutions
Country of OriginUnited States
Dimensions3.28 in x 1.63 in x 1.19 in
Horsepower - Maximum2
Length3.28 in
Standards - RoHS Compliance StatusCM
ApplicationExtra Heavy Duty
Dielectric StrengthWithstands 2,000V minimum
NEMA Rating6-20R
Number of Wires3-Wire
Size3.28 in x 1.63 in x 1.19 in
StandardCertified to CSA 22.2, No. 42 File 285;Guide RTRT Fed Spec WC596G;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
Voltage Rating250 V
Wire Size#12 AWG to #10 AWG
Weight0.15 lb.
General Literature Asset 1 Display TextEdgeConnect™ Technology FAQ
Display SizeStandard Sized Product
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number5461
Material - Mounting HardwareScrew Mounting
SeriesExtra Heavy Duty
BOX SIZE3.500x9.900x4.600 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585013954
Case - Total Units100 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585013953
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
