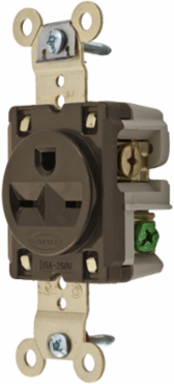

Hubbell Wiring Device-Kellems HBL5661 Specification Grade 2-Pole 3-Wire Receptacle 15A 250V Brown
Hubbell Wiring Device-Kellems HBL5661 Specification Grade 2-Pole 3-Wire Receptacle 15A 250V Brown
- MPN: HBL5661
- UPC: 783585013992
- PPN: HBL-HBL5661
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$28.28/ EA
Description
Straight Blade Devices, Receptacles, Single, Specification Grade, 2-Pole 3-Wire Grounding, 15A 250V, 6-15R, Brown, Single Pack
Features
- One-piece brass integral ground strap
- Unique bypass contact design
- Standard
Specifications
Specifications
- Country of Origin
- US
- Dimensions
- 1.94 in x 1.63 in x 1.19 in
- Height
- 1.19 in
- Industry Standard(s)
- Certified to CSA 22.2, No. 42 File 285;Guide RTRT Fed Spec WC596G;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
- Amperage Rating
- 15 A
- Color
- Brun
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Standard
- Type
- Single Receptacle
- Wattage
- 3750 W
- Voltage Rating Description
- 250 V
- Width
- 1.63 in
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 5661
- Material - Mounting Hardware
- Screw Mounting
- Series
- Extra Heavy Duty
- BOX SIZE
- 3.200x9.200x4.500 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585013992
- Case - Total Units
- 100 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585013991
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating15 A
Each - Width1.800 in
Horsepower - Maximum1.5
Length1.94 in
Standards - RoHS Compliance StatusCM
ApplicationExtra Heavy Duty
Dielectric StrengthWithstands 2,000V minimum
NEMA Rating6-15R
Number of Wires3-Wire
Size1.94 in x 1.63 in x 1.19 in
StandardCertified to CSA 22.2, No. 42 File 285;Guide RTRT Fed Spec WC596G;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
Voltage Rating250 V
Wire Size#12 AWG to #10 AWG
Weight0.15 lb.
ConnectivityBack and Side Wired
Nema Rating6-15R
Number Of Wires3-Wire
StyleFinder Groove Face
Description - InvoiceSGL RCPT, IND GRD, 15A 250V, 6-15R, BR
Harmonization Code8536690200
MSDS FlagNo
Sub Class CodeA04A020
Current Rating15 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.35 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight9.040 lb.
Lowest Level UOMEach
Pallet Height45.500 in
Pallet Weight1303.500 lb.
Certifications
- EU RoHS Indicator
- Yes
