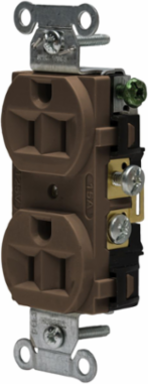

Hubbell Wiring Device-Kellems 5262AB Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Brown
- MPN: 5262AB
- UPC: 783585530871
- PPN: HBL-5262AB
- UNSPSC: 39121406
CAD
$12.92
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Brown
Features
- Easy access split circuit tab
- Finder Groove Face
- Triple wipe contacts
- Wrap-around galvanized steel strap
- Self Grounding
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- CN
- Each - Height
- 1.100 in
- Each - Width
- 1.600 in
- Size
- Standard Sized Product
- Application
- Hubbell-Pro Heavy Duty
- Environmental Conditions
- Indoor Dry unless protected by additional means
- NEMA Rating
- 5-15R
- Number of Wires
- 3-Wire
- Special Features
- Self Grounding
- Temperature Rating
- Maximum continuous 75°C; minimum -40°C (w/o impact)
- Voltage Rating
- 125 V
- Wire Size
- #14 AWG to #10 AWG
- Mounting Type
- Screw Mount
- Number Of Poles
- 2-Pole
- Style
- Finder Groove Face
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A04A060
- Series
- Hubbell-PRO
Current / Amperage Rating15 A
Each - Length4.200 in
Industry Standard(s)UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant
Amperage Rating15 A
ColorBrown
MountingScrew Mount
Number of Poles2-Pole
PhaseSingle Phase
StandardUL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant
TypeStandard Duplex
Wattage1875 W
ConnectivityBack and Side Wired
Nema Rating5-15R
Number Of Wires3-Wire
Class CodeA04
Harmonization Code8536698000
MSDS FlagNo
MaterialThermoplastic/Composite
