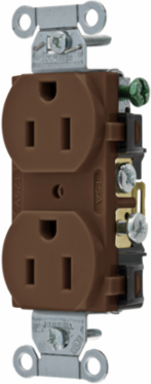

Hubbell Wiring Device-Kellems CR15 Commercial Grade Duplex Receptacle 15A 125V Brown 2-Pole
- MPN: CR15
- UPC: 783585900001
- PPN: HBL-CR15
CAD
$2.95
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Duplex, Commercial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Brown, Single Pack.
Features
- Easy access split circuit tab
- Fork terminal capable
- Smooth face
- Triple wipe contacts
Documentation & Downloads
Specifications
Additional
- Current Rating
- 15 A
- Horsepower - Maximum
- 0.5 HP
- Number Of Poles
- 2 Pole
- Length
- 1.32 in
- Height
- 3.28 in
- Weight
- 0.15 lb
- Material
- Nylon
- Power Contacts Material
- Brass (.030 in)
- Terminal Screws Material
- Plated Steel
- Mounting Screws Material
- Galvanized Steel
- Style
- Smooth Face
- Type
- Standard Duplex
- Phase
- Single Phase
- Current Interrupting
- Certified for full rated current
- Operating Temperature Range
- -40°C to 75°C
- Color
- Brown
Voltage125 V
Wattage1875 W
Number Of Wires3 Wire
Width0.83 in
Dimensions1.32 in x 0.83 in x 3.28 in
Wire Size#14 AWG to #10 AWG
Mounting Hardware MaterialScrew Mounting
Mounting Strap MaterialGalvanized Steel (.040 in)
Self-grounding Staple MaterialStainless Steel
Item TypeTraditional Duplex
SeriesCommercial Specification Grade
NEMA Rating5-15R
Dielectric Voltage2000 V minimum
FlammabilityUL 94 V-2
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
OEM Brand NameHubbell Wiring Device-Kellems
