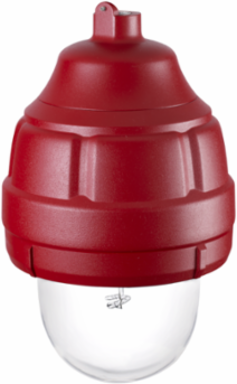

Strobe Light, Explosion-Proof, Supervised, Hearing-Impaired, UL and cUL CID1, ULC Fire Listed, 24VDC, Clear, Mount Sold Separately
Federal Signal

Federal Signal 24XSTHI-CN Strobe Light, Explosion-Proof, Supervised, Hearing-Impaired, UL and cUL CID1, ULC Fire Listed, 24VDC, Clear, Mount Sold Separately

  • MPN: 24XSTHI-CN
  • UPC: 782979241034
  • PPN: FDS-24XSTHI-CN
  • UNSPSC: 39111706

CAD

$4520.59

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Model 24XSTHI Explosion-Proof Hearing Impaired Strobe Light produces 80 high-intensity flashes per minute. Model 24XSTHI is Type 4X and IP66 rated. Model 24XSTHI features a current in-rush limiting PCB design to provide improved compatibility with in-rush sensitive devices. This design limits the peak in-rush to 2A and operates on only 0.63A, when powered by 24VDC. To synchronize strobe lights purchase the Synchronization Module (SSM) separately.The models can be paired with a pendant, ceiling or wall mount sold separately. The installation process is simple; by preinstalling the mounting box, the fixture can be simply threaded onto the mounting box, making an electrical connection when the threads are engaged.Model 24XSTHI offers a heavy duty, copper-free cast aluminum housing sealed with a red powder coat paint. This unit is specifically designed for explosion-proof atmospheres and/or corrosive environments. The 24XSTHI is ideal for use in areas such as oil rigs, mines, refineries, and chemical plants.

Features

  • Available in 24VDC regulated
  • 80 flashes per minute
  • 3/4" NPT pendant, ceiling, and wall mount options available
  • Dome guard optional
  • Type 4X, IP66 enclosure
  • IP69K compliant
  • Marine Rated
  • UL and cUL Listed for Class I, Division 1, Groups C and D; Class I, Division 2, Groups A, B, C and D; Class II, Groups E, F and G; Class III, ULC Fire Listed
  • 24XSTHI-MOD is UL Fire Listed
  • 24XSTHI-CN is ULC Fire Listed

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
United States
Body Color
Red
Candela Power Peak
150
Diameter (in)
8.82
Flashes Per Minute
60
Mount Type
3/4-Inch NPT Pendant, Ceiling, Wall
Operating Temp.
-67˚ to +150˚F (-55˚ to +65˚C)
Required Mount
red-mounting-kits
Depth
11.37 in, 28.8798 cm
Diameter
8.82 in, 22.4028 cm
Weight13.9 lbs
Candela Effective PowerCandela Power Per UL 1971 - 30
Certification ListingULC Fire
Diameter (mm)224.028
AvailabilityContact Us for Availability
Operating Current Amps1.02 @ 16VDC/0.63 @ 24VDC
Operating Voltage24 Vdc
Visual Signals Certification ListingULC Fire Listed
Height11.37 in, 28.8798 cm
