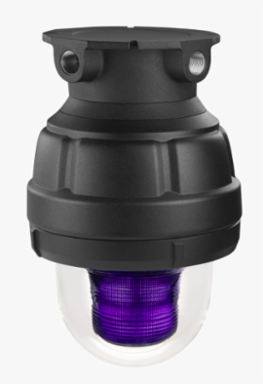

Federal Signal 24XST-024M-MOD Strobe Light, Explosion-Proof, Supervised, UL and cUL CID1, 24VDC, Magenta, Mount Sold Separately

MPN: 24XST-024M-MOD
UPC: 782979232933
PPN: FDS-24XST-024M-MOD
UNSPSC: 39111706

$4862.70

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Strobe Light, Explosion-Proof, Supervised, UL and cUL CID1, 24VDC, Magenta, Mount Sold Separately

Features

Approved for mounting in any manner– including dome up
Available in 24VDC
Six lens colors: Amber, Blue, Clear, Green, Magenta and Red
10,000 hour strobe tube
3/4" NPT pendant. ceiling, and wall mount options available
Dome guard optional
Conformal coated PCB
Type 4X, IP66 enclosure
IP69K compliant
Marine Rated
UL and cUL Class I, Division 1, Groups C and D; Class I, Division 2, Groups A, B, C and D; Class II, Division 1, Groups E, F and G; Class III

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States
Weight	13.9 lbs
Candela Power Peak	280
Diameter	8.82 in (224.028 mm)
Availability	Call For Availability
Lens Style	Fresnel
Operating Current Amps	0.71 @ 24VDC
Required Mount	black-mounting-kits
Environmental Rating	Explosion-Proof
Lead Time	Call For Availability

Height	11.37 in
Body Color	Black
Certification Listing	CSFM, Marine, UL, cUL
Flashes Per Minute	60
Lens Color	Magenta
Mount Type	3/4-Inch NPT Pendant, Ceiling, Wall
Operating Temp.	-67˚ to +150˚F (-55˚ to +65˚C)
Visual Signals Lens Color	Magenta
Enclosure Rating	IP66, IP69K, Type 4X
Product Life Cycle Status	Completed
