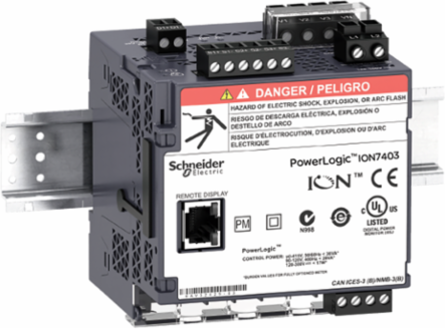

Schneider Electric METSEION7413 PowerLogic ION7400 Power Quality Meter, 512 MB, DIN Rail Mounting
- MPN: METSEION7413
- PPN: SCH-METSEION7413
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PowerLogic ION7400 utility feeder power meters combine capabilities not typically available in compact meters. They offers a hight flexibility and usability, along with accurate 3-phase energy and power measurements with data logging. Use Power Monitoring Expert software for data analysis or share operation data with SCADA systems through multiple communication channels and protocols. Certified by third party labs for energy accuracy (IEC 62052-11, IEC 62052-22, IEC 62052-24) and power quality (IEC 62586-2, IEC 61000-4-30 Class S). Cybersecurity features include secure protocols (HTTPS, SFTP), security event logging, Syslog protocol. Ability to enable/disable communication ports, and 16 user configurable accounts. With 512 MB of memory to support 50 data logs, 50+ user-definable alarms, waveform captures, 1/2 cycle RMS logging, custom web pages, min/max logs, energy trends, and Time of Use. The ability to timestamp events to +/-1 ms utilizing time synchronization method that include PTP (IEEE1588), NTP, IRIG-B, GPS ASCII (RS485) and network time set function. 3 digital inputs and one digital output. I/O option modules include 2 relays and 6 digital inputs or 2 analog outputs and 4 analog inputs. Wide control power range of 20-60 VDC. Operating environment of -25 to +70C; Humidity rating of 5% to 95%; Altitude up to 3000 m. DIN rail mounting (no display).
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Canada, France, Sweden, United States |
|---|

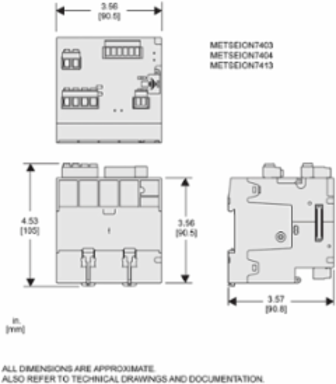

| Depth | 90.8 mm |
|---|
Communications & Management Attributes
| Communication Port Protocol | Modbus RTU 115 kbauds - 2-wire, ION 115 kbauds - 2-wire, DNP3, IEC 61850, Modbus TCP/IPEthernet Modbus TCP/IP daisy chain 10/100 Mbit/s, RSTP 801.1d 2004, DLMS |
|---|---|
| Communication Network Type | IPv6 (internet protocol) |
| Communication Service | NTP time synchronization, SMTP e-mail notification, RSTP support, DHCP, SNMP, PTP time synchronization |
|---|---|
| Communication Port Support | ETHERNETscrew terminal block RS485mini B USB USB |
Complementary Attributes
| Line Rated Current | 10 A, 1 A, 5 A |
|---|
Important Information Attributes
| Cybersecurity | enable/disable communication ports, robust security logs, port hardening, password protection, Syslog protocol support |
|---|---|
| Device Application | WAGES metering, power monitoring, data aggregation, revenue billing |
| Information Displayed | voltage, current, frequency, power, energy consumption, harmonic distortion |
| Measurement Accuracy | current +/- 0.1 %, voltage +/- 0.1 %active energy +/- 0.2 % |
| Number Of Poles | 1P + N, 3P, 3P + N |
| Type Of Measurement | apparent power per phase, rmspower factor per phase, rmscurrent, voltage, frequencyactive and reactive power total, apparent power total, power factor total, active and reactive power per phase, rms, active and reactive energy, apparent energy |
| Certificate Agency | CE, cULus, N998 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 2 kg CO2 eq., 1.8454293882772015 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 39 kg CO2 eq., 38.65040676622675 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | DPIBS |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Dangerous Goods Code | LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT |
| Device Short Name | ION7413 |
| Energy Efficiency Optimized | False |
| Installation Category | III |
| Measurement Voltage | 57-400 V AC 42...69 Hz between phase and neutral100-690 V AC 42...69 Hz between phases |
| Mounting Mode | clip-on |
| Power Consumption In W | 17 W |
| Product Name | PowerLogic ION7400 |
| Range | PowerLogic |
| Sampling Rate | 256 samples/cycle |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2025-04 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | The functional unit of the PowerLogic PM8000 series is a high-precision power and energy meter designed for advanced monitoring and analysis. It operates with a low power consumption of 4.7 W in active mode and supports 100% runtime, with a total energy consumption of 411.72 kWh for active components for 10 years. It features robust cybersecurity with secure protocols (HTTPS, SFTP), Syslog support, and 50 configurable user accounts. With 512 MB memory, it supports 50 data logs, waveform captures, alarms, energy trends, and custom web pages. It offers precise event timestamping to ±1 ms using PTP, NTP, IRIG-B, GPS, and network time sync. The device includes 3 digital inputs, 1 digital output, and supports up to 4 I/O modules (relays, analog/digital I/Os). It operates in harsh environments (-25 to +70°C, 5–95% humidity, up to 3000 m altitude) and mounts via DIN rail with optional remote display. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 411.72 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Height Nominal | 90.5 mm |
| [Us] Rated Supply Voltage | 20...60 V DC +/- 10 % |
| Package Weight(Lbs) | 1.030 kg |
| Warranty (In Months) | 18 |
| Other Technical Guide Name | PLSED310113EN |
| Data Recording | sequence of event recording, trending/forecasting, harmonics logs, time stamping, GPS synchronisation, waveform logs, min/max of instantaneous values, sag and swell logs, data logs, event logs, alarm logs, 50 data recorders |
|---|---|
| Electromagnetic Compatibility | electrostatic discharge conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3electrical fast transient/burst immunity test conforming to IEC 61000-4-4surge immunity test conforming to IEC 61000-4-5conducted RF disturbances conforming to IEC 61000-4-6magnetic field at power frequency conforming to IEC 61000-4-8voltage dips and interruptions immunity test conforming to IEC 61000-4-11immunity to impulse waves conforming to IEC 61000-4-12conducted and radiated emissions conforming to EN 55022, conducted and radiated emissions conforming to EN 55011, conducted and radiated emissions conforming to FCC part 15, conducted and radiated emissions conforming to ICES-003conducted RF disturbances (2...150 Hz) conforming to CLC/TR 50579surge withstand conforming to IEEE C37.90.1 |
| Isolation Voltage | III400-690 V conforming to IEC 61010-1:ed. 3, III400-690 V conforming to EN 61010-1:ed. 3III347-600 V conforming to UL 61010-1:ed. 3, III347-600 V conforming to CSA C22.2 No 61010-1:ed. 3 |
| Network Frequency | 50 Hz, 60 Hz |
| Power Quality Analysis | EN 50160 2010 compliance reportIEEE 519 2014 compliance report, IEC 61000-4-30 class S power quality measurement, up to the 63rd harmonic, harmonic distortion, waveform capture, voltage sag and swell detection, programmablity (logic and math functions)IEC 62586 power quality monitoringIEC 61000-4-15 disturbance direction detection, rapid voltage change |
| Web Services | customizable home page, file upload/download via FTP, file upload/download via SFTP, web server, alarm notification by e-mail, viewing of captured waveform (FTP), viewing of captured waveform (web), HTTPS server |
| Carbon Footprint Of The Distribution Phase [A4] | 0.6920075596561817, 0.7 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.5434712530089375, 0.5 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 203 kg CO2 eq., 202.64310837690203 |
| Local Publishable Date | 2026-03-10 |
| Stocking Flag | Y |
| Device Type | Relay, Control & Measurement - measuring, monitoring device |
| Traceability | Yes |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1512006EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2333 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Product Kit Identifier | N |
| Display Type | Without Display |
| Frequency Measurement Range | 42-69 Hz |
| Measurement Current | 50-10000 mA |
| Memory Capacity | 512 MB |
| Mounting Support | DIN rail |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | power meter |
| Returnability | No |
| Software Version | v6.3.2-2 |
| Total Lifecycle Carbon Footprint | 244 kg CO2 eq. |
| Pep Code | ENVPEP1406022_V2 |
| Pep Verification Date | 2025-11-28 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; Canada, CA |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; United States, US |
| Recyclability Potential In % | 12 |
| Width Nominal | 90.5 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 9028300000 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 244.37442334407112 |
| Circularity Profile | ENVEOLI1512006EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 9842.52 ft (3000 m) |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 5-95 % |
| Pep Verification Date | 2025-11-28 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Ambient Air Temperature For Operation | -25-70 °C-25-70 °C |
| Environmental Disclosure | ENVPEP1406022_V2 |
| Ip Degree Of Protection | IP30 conforming to IEC 60529 |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1406022_V2 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | power meter |
|---|
ETIM
| ETIM 8 | EC002301 |
|---|
| ETIM 9 | EC002301 |
|---|
Output Attributes
| Number Of Outputs | 1 pulse |
|---|
Input Attributes
| Analogue Input Type | voltage (impedance 5 MOhm)current (impedance 0.3 mOhm) |
|---|
| Number Of Inputs | 3 digital 30 V AC3 digital 60 V DC |
|---|
