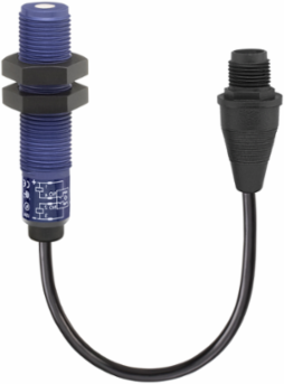

Telemecanique Sensors SM380A22800 Hyde Park, Ultrasonic sensor, discrete, 12 mm barrel, 12 24 V DC
- MPN: SM380A22800
- UPC: 785901679981
- PPN: TES-SM380A22800
- UNSPSC: 39122230
CAD
$446.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Hyde Park, Ultrasonic sensor, discrete, 12 mm barrel, 12 24 V DC
Documentation & Downloads
Specifications
Key Specifications
- Iso Thread
- M12 x 1
- Series Name
- Superprox 300
- Discrete Output Function
- 1 NO
- Range Of Product
- Hyde Park
- Product Specific Application
- discrete proximity
- Electrical Connection
- remote male connector M12 4 pins, 152 mm
- Enclosure Material
- ULTEM
- Material
- plastic
- [Us] Rated Supply Voltage
- 12...24 V DC overload and short-circuit protection
Type Of Sensing Windowfixed
Discrete Output TypePNP/NPN
Type Of Output Signaldiscrete
Supply Voltage Limits10-28 V DC
Sensor Typeultrasonic sensor
Sensor Designcylindrical M12
Front Materialglass epoxy
Device Short NameSM380
Wiring Technique4-wire
Complementary
- Repeat Accuracy
- 0.7 %
- Height
- 12 mm
- Maximum Switching Current
- 100 mA reverse polarity protection
- Width
- 12 mm
- [Sn] Nominal Sensing Distance
- 50.8-50.8 mm
- [Sd] Sensing Range
- 6.3-50.8 mm
- Net Weight
- 0.011 kg
- Maximum Differential Travel
- 0.7 mm
Beam Angle8 °
Minimum Size Of Detected Objectcylinder diameter 2.5 mm - up to 1 mm sensing distance
Transmission Frequency500 kHz
Depth12 mm
Blind Zone6.4-6.4 mm
Length58.16 mm
Current Consumption25 mA
Environment
- Product Certifications
- UL
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Relative Humidity
- 100-100 % without condensation
- Vibration Resistance
- +/-1 mm 10-55 Hz)IEC 60068-2-6
- Marking
- CE
- Ip Degree Of Protection
- IP67
Ambient Air Temperature For Operation-30-70 °C
Ambient Air Temperature For Storage-40-100 °C
Nema Degree Of ProtectionNEMA 4X indoor use only)
Shock Resistance30 gn in all 3 axes 11 ms IEC 60068-2-27
Resistance To Fast Transients1 kV level 3 IEC 61000-4-4
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI111225EN
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Environmental DisclosureENVPEP111234EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
