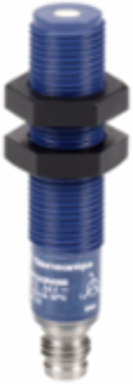

Telemecanique Sensors SM350A20800 Ultrasonic sensor SM, 12 mm barrel, output discrete, 12-24 V DC, discrete output type PNP/NPN, Male connector M8 4 pins, discrete output function 1 NO (SM350A20800)

MPN: SM350A20800
PPN: TES-SM350A20800

$446.68

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Ultrasonic sensor SM, 12 mm barrel, output discrete, 12-24 V DC, discrete output type PNP/NPN, Male connector M8 4 pins, discrete output function 1 NO (SM350A20800)

Documentation & Downloads

Specifications

Key Specifications

Indivisible sale quantity	1

Commercial status	Commercialised

Complementary

Minimum size of detected object	Cylinder diameter 2.5 mm - up to 1 mm sensing distance

Current consumption	25 mA

Environment

IP degree of protection	IP67
Product certifications	UL
Vibration resistance	+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)

Marking	CE
NEMA degree of protection	NEMA 4X (indoor use only)
Shock resistance	30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27

Main

Range of product	Hyde Park
Series name	Superprox 300
Material	Plastic
Type of sensing window	Fixed
Wiring technique	4-wire
Discrete output type	PNP/NPN
Electrical connection	Male connector M8 4 pins
Enclosure material	ULTEM

Sensor type	Ultrasonic sensor
Sensor design	Cylindrical M12
Type of output signal	Discrete
Discrete output function	1 NO
Rated supply voltage (Us)	12...24 V DC with overload and short-circuit protection
ISO thread	M12 x 1
Product specific application	Discrete proximity
Front material	Glass epoxy
