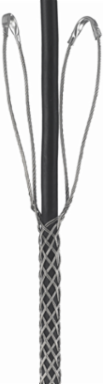

Hubbell Wiring Device-Kellems 02206002 Closed Mesh Double Eye Support Grip 1.00-1.24 Inch, 4 Inch Width, Tin-Coated Bronze

Closed Mesh Double Eye Support Grip 1.00-1.24 Inch, 4 Inch Width, Tin-Coated Bronze
Closed Mesh Double Eye Support Grip 1.00-1.24 Inch, 4 Inch Width, Tin-Coated Bronze
  • MPN: 02206002
  • UPC: 783585304366
  • PPN: HBL-02206002
  • UNSPSC: 39121719

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$370.68/ EA

Description

Support Grips, Double Eye, Double Weave, Closed Mesh, Tin-Coated Bronze, 1.00-1.24"

Features

  • Double eye
  • Strand equalizers position wires for equal loading throughout grip length
  • Eye assemblies provide eye reinforcement at support hardware
  • Closed Mesh

Specifications

Specifications

General Literature Asset 2 Display Text
PULP & PAPER SOLUTIONS
Country of Origin
United States
Cable Diameter Range
1 in-1.24 in
Industry Standard(s)
CSA Certified
Application
Double Eye
Special Features
Closed Mesh
Type
Double Eye
Style
Closed Mesh, Double Weave
Description - Invoice
HD DBL EYE SUP GRIP, 1.0-1.2", BRZ, CLS
Harmonization Code
7419809999
MSDS Flag
No
Material - Mounting Hardware
Screw Hook or Beam Clamp
Material
Bronze, Tin Coated
Base Unit of Measure
EA
Each - Pack Description
Each
General Literature Asset 3 Display TextFOOD & BEVERAGE SOLUTIONS
Approx Breaking Strength4,280 lb.
Width4.000 in
PerformanceMechanical - Approximate Breaking Strength - 4,280 (19,037);Mechanical - Working Load - 428 (1903.7) Lbs. (N)
Cable Size1.00"-1.24" (2.54-3.15)
StandardCSA Certified
General Literature Asset 1 Display TextWire Management Solutions Brochure
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A480
ConstructionWoven
SeriesHeavy Duty
Carton - SCC-14 Next Lower Level Sub Pack00783585304366
Lowest Level UOMEach

Certifications

EU RoHS Indicator
