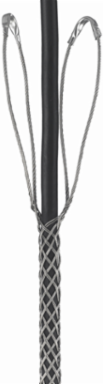

Hubbell Wiring Device-Kellems

Hubbell Wiring Device-Kellems 02206006 Support Grips Double Eye Closed Mesh Bronze 2.50-2.99 Inch

Support Grips Double Eye Closed Mesh Bronze 2.50-2.99 Inch
Support Grips Double Eye Closed Mesh Bronze 2.50-2.99 Inch
  • MPN: 02206006
  • UPC: 783585304403
  • PPN: HBL-02206006
  • UNSPSC: 39121719

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$750.97/ EA

Description

Support Grips, Double Eye, Double Weave, Closed Mesh, Tin-Coated Bronze, 2.50-2.99"

Features

  • Double eye
  • Strand equalizers position wires for equal loading throughout grip length
  • Eye assemblies provide eye reinforcement at support hardware
  • Closed Mesh

Specifications

Specifications

Country of Origin
United States
Cable Diameter Range
2.5 in-2.99 in
Industry Standard(s)
CSA Certified
Application
Double Eye
Special Features
Closed Mesh
Type
Double Eye
General Literature Asset 2 Display Text
PULP & PAPER SOLUTIONS
Style
Closed Mesh, Double Weave
Description - Invoice
HD DBL EYE SUP GRIP, 2.5-3.0"; BRZ, CLS
Harmonization Code
7419805050
MSDS Flag
No
Sub Class Code
A52A480
Construction
Woven
Series
Heavy Duty
BOX SIZE
12.875x32.625x18.625 (in)
Carton - Number of Sub Packs
5
Carton - SCC-14 Next Lower Level Sub Pack
783585304403
Each - Pack Description
Each
Approx Breaking Strength8,050 lb.
Width4.500 in
PerformanceMechanical - Approximate Breaking Strength - 8,050 (35,806);Mechanical - Working Load - 805 (3580.6) Lbs. (N)
Cable Size2.50"-2.99" (6.35-7.59)
StandardCSA Certified
General Literature Asset 1 Display TextPulp & Paper Solutions
General Literature Asset 3 Display TextFOOD & BEVERAGE SOLUTIONS
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number022010101
Material - Mounting HardwareScrew Hook or Beam Clamp
MaterialBronze, Tin Coated
Base Unit of MeasureEA
Carton - Gross Weight per Pack36.750 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Lowest Level UOMEach

Certifications

EU RoHS Indicator
Yes
