Double Eye Support Grips, Closed Mesh, 4.50-4.99 Inch, Bronze
Double Eye Support Grips, Closed Mesh, 4.50-4.99 Inch, Bronze
Hubbell Wiring Device-Kellems

Hubbell Wiring Device-Kellems 02208009 Double Eye Support Grips, Closed Mesh, 4.50-4.99 Inch, Bronze

  • MPN: 02208009
  • UPC: 783585304632
  • PPN: HBL-02208009
  • UNSPSC: 39121719

CAD

$1559.83

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

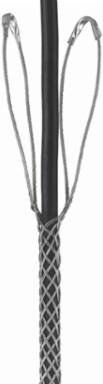

Support Grips, Double Eye, Double Weave, Closed Mesh, Tin-Coated Bronze, 4.50-4.99"

Features

  • Double eye
  • Strand equalizers position wires for equal loading throughout grip length
  • Eye assemblies provide eye reinforcement at support hardware
  • Closed Mesh

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
United States
Cable Diameter Range
4.5 in-4.99 in
Industry Standard(s)
CSA Certified
Application
Double Eye
Special Features
Closed Mesh
Type
Double Eye
General Literature Asset 2 Display Text
PULP & PAPER SOLUTIONS
Style
Closed Mesh, Double Weave
Description - Invoice
HD DBL EYE SUP GRIP, 4.5-5.0"; BRZ, CLS
Harmonization Code
7419805050
MSDS Flag
No
Material - Mounting Hardware
Screw Hook or Beam Clamp
Material
Bronze, Tin Coated
Base Unit of Measure
EA
Each - Pack Description
Each
Approx Breaking Strength12,070 lb.
Width7.000 in
PerformanceMechanical - Approximate Breaking Strength - 12,070 (53,687);Mechanical - Working Load - 1207 (5368.7) Lbs. (N)
Cable Size4.50"-4.99" (11.43-12.67)
StandardCSA Certified
General Literature Asset 1 Display TextPulp & Paper Solutions
General Literature Asset 3 Display TextFOOD & BEVERAGE SOLUTIONS
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A480
ConstructionWoven
SeriesHeavy Duty
Carton - SCC-14 Next Lower Level Sub Pack00783585304632
Lowest Level UOMEach

Certifications

EU RoHS Indicator
Yes
